Запчасти Case 580SN (88.035.06[02]) - DIA KIT, CONVERSION 2 LEVERS TO FOOT SWING - EXTENDABLE DIPPER (88) - ACCESSORIES

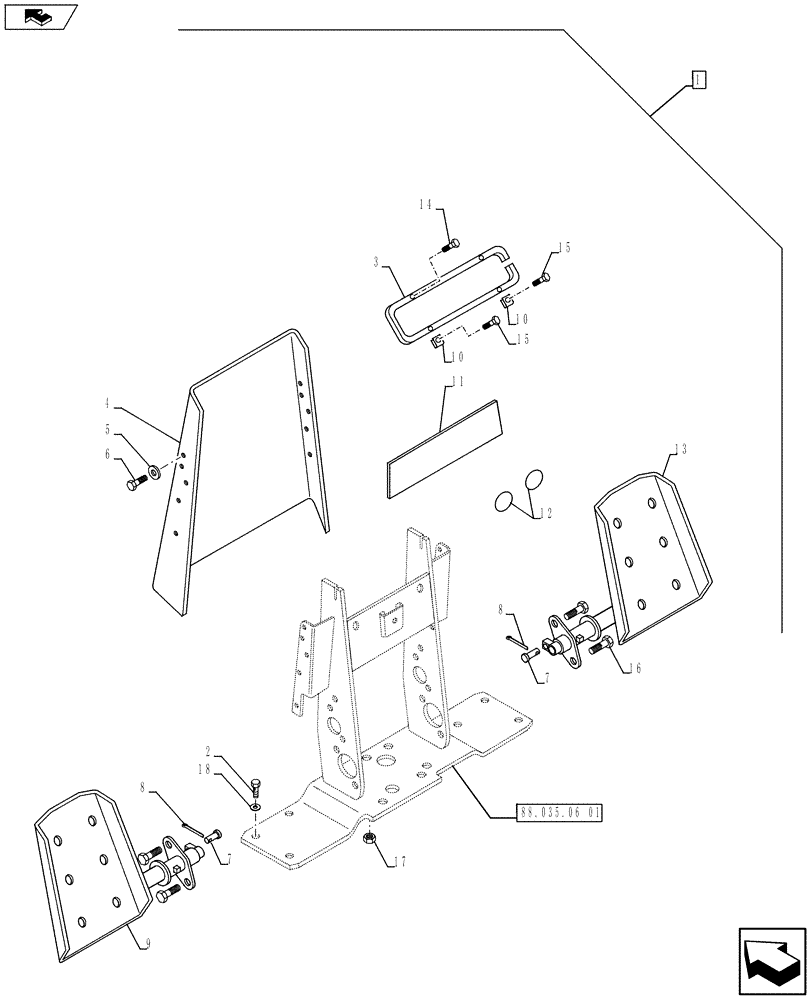

Схема запчастей Case 580SN - (88.035.06[02]) - DIA KIT, CONVERSION 2 LEVERS TO FOOT SWING - EXTENDABLE DIPPER (88) - ACCESSORIES
8
7
15
home
14
1
10
17
15
88.035.06 01
4
11
10
8
16
6
13
3
7
5
12
2
18
9

Артикул

Название

Примечание

Количество

1

84487936

KIT

Conversion 2 Levers to Foot Swing, Ext. Dipper, Incl 2 - 18, Serial Range: -`0

1шт.

See Ref. 88.035.06 [01] , 88.035.06 [03]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

87687101

WASHER,10.65mm ID x 31mm OD x 3.3mm Thk

4шт.

3

136822A1

RETAINER

1шт.

4

390759A1

COVER

2 Levers

1шт.

5

87310139

WASHER,7.14mm ID x 15.88mm OD x 1.65mm Thk

5шт.

6

87310156

SELF-TAP SCREW,M6.3 x 1.8 x 16mm, Stainless

5шт.

7

D149288

PIN,8.33mm OD x 30.66mm L

2шт.

8

432-612

COTTER PIN,3/32" x 3/4"

2шт.

9

136271A2

PEDAL

1шт.

10

131-861

SPRING NUT,Tinn, U, #10-24

4шт.

11

D149826

IMPORTANT DECAL

Caution; For All Models With Foot Swing Backhoe Controls and Standard Backhoe Models With Hand Swing

1шт.

12

353-411

PLUG,Dome, 1.000" hole, Nylon

2шт.

13

136270A2

PEDAL

1шт.

14

87310126

SCREW,Phillips Drive, Pan HD, #10 - 24 x 3/4", SST

2шт.

15

87310124

SCREW,Phillips Drive, Pan HD, #10 - 24 x 1/2", SST

2шт.

16

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

17

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

18

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

4шт.

Выбрано товаров: 20
