Запчасти Case 580SN (88.035.04[04]) - DIA KIT, RIDE CONTROL (88) - ACCESSORIES

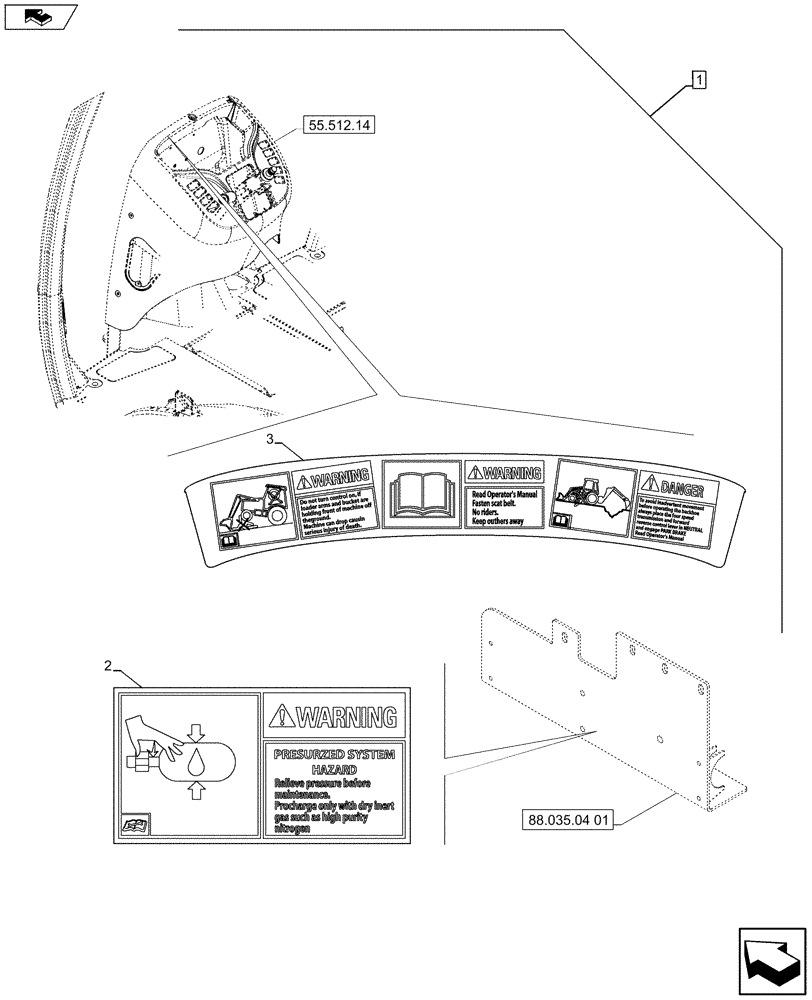

Схема запчастей Case 580SN - (88.035.04[04]) - DIA KIT, RIDE CONTROL (88) - ACCESSORIES
home
88.035.04 01
2
1
3
55.512.14

Артикул

Название

Примечание

Количество

1

47396149

KIT

Ride Control, Incl 2 - 3, Serial Range: -`0

1шт.

See Ref. 88.035.04 [01] to 88.035.04 [03]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

384260A1

WARNING DECAL,168mm x 88mm H

Ride Control Accumulator; English

1шт.

3

392375A1

WARNING DECAL

Warning/Warning/Danger; Front, With Ride Control; Do Not Turn Ride Control On/Read Operator's Manual/To Avoid Inadvertent Movement; English

1шт.

Выбрано товаров: 5
