(88.035.03[05]) - DIA KIT, UNI TO COMBO AUX, EXTENDABLE DIPPER, MECHANICAL CONTROL

Запчасти Case 580SN (88.035.03[05]) - DIA KIT, UNI TO COMBO AUX, EXTENDABLE DIPPER, MECHANICAL CONTROL (88) - ACCESSORIES

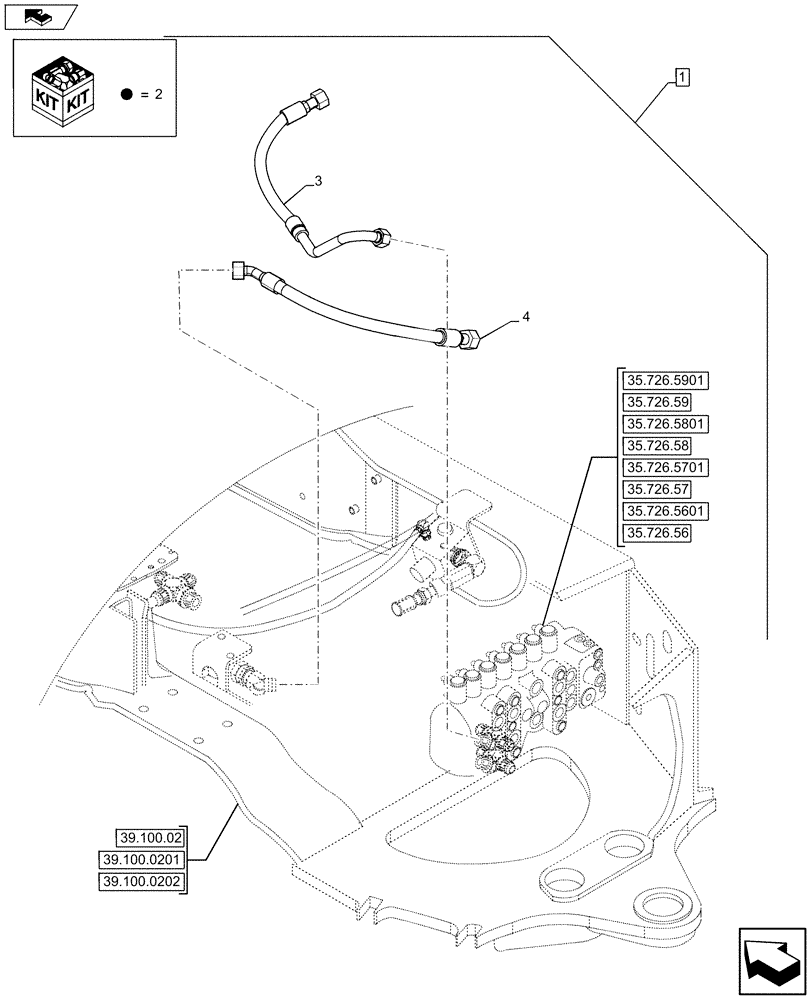

Схема запчастей Case 580SN - (88.035.03[05]) - DIA KIT, UNI TO COMBO AUX, EXTENDABLE DIPPER, MECHANICAL CONTROL (88) - ACCESSORIES
2
3
35.726.59
35.726.57
35.726.5901
39.100.0201
4
35.726.5601
home
39.100.02
35.726.58
35.726.5801
35.726.5701
1
35.726.56
39.100.0202
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84396879

CONSTRUCTION DIA

Uni to Combo Aux, Incl 2 - 4, Serial Range: -`0

1шт.

See Ref. 88.035.03 [01] to 88.035.03 [04], 88.035.03 [06]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84276556

SERVICE KIT

Hydraulic Valve Seal Kit

1шт.

3

84292027

HYD TUBE

1шт.

4

84292795

HOSE ASSY.,19mm ID x 698mm L

1шт.

Выбрано товаров: 6
