(88.021.01) - DIA KIT, TORQUE CONVERTER

Запчасти Case 580SN (88.021.01) - DIA KIT, TORQUE CONVERTER (88) - ACCESSORIES

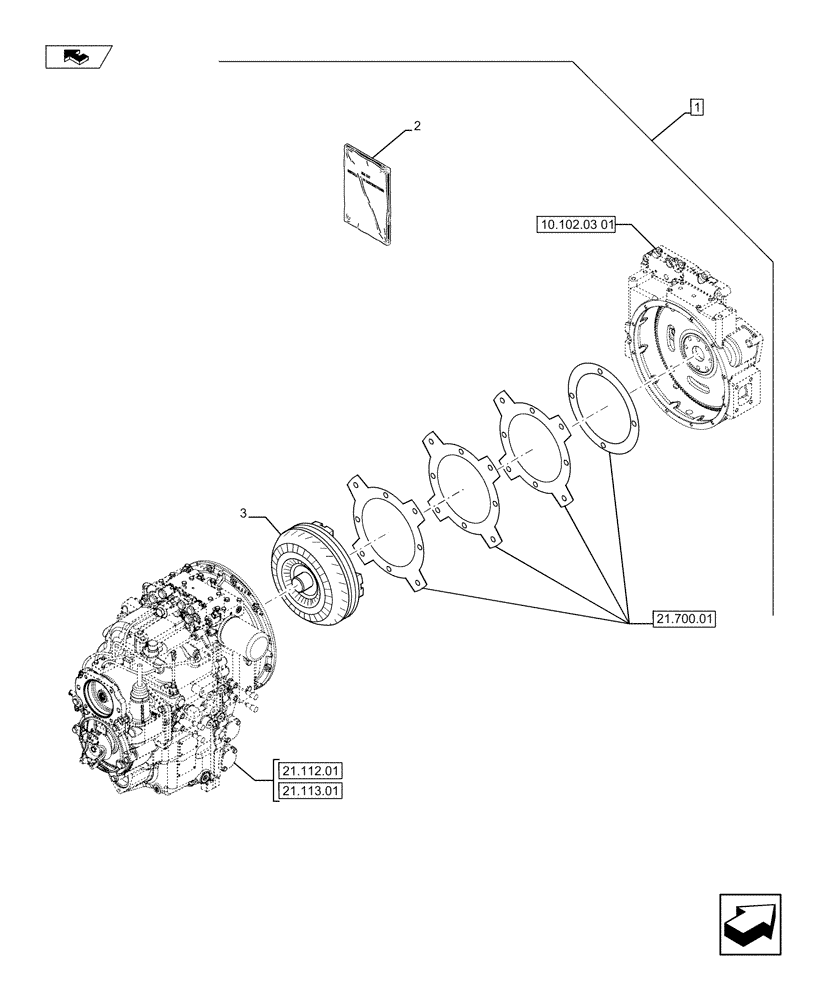

Схема запчастей Case 580SN - (88.021.01) - DIA KIT, TORQUE CONVERTER (88) - ACCESSORIES
3
2
21.700.01
21.112.01
1
21.113.01
home
10.102.03 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47411176

CONSTRUCTION DIA

Torque Converter, Incl 2 - 3

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

47411178

INSTRUCTION

1шт.

3

87702193

CONVERTER

1шт.

3

87702193R

REMAN-TORQUE CONVERT

1шт.

3

87702193C

CORE-TORQUE CONVERTR

Return Number

1шт.
