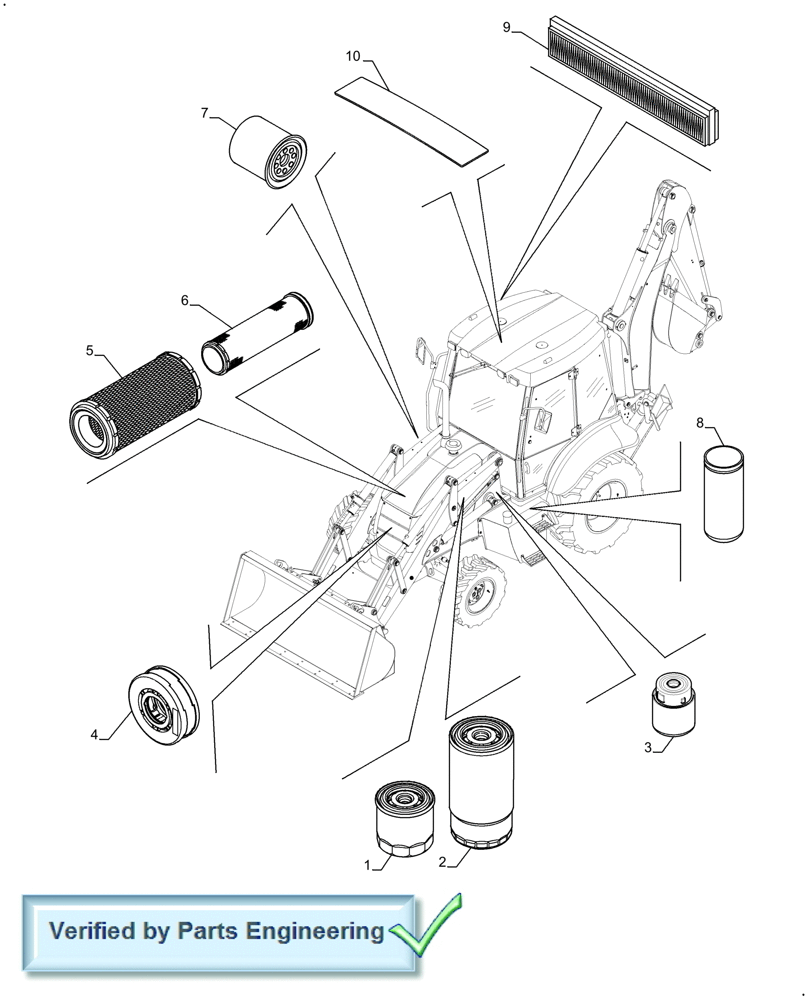

Запчасти Case 580SN (05.100.03) - FILTERS & CAPACITIES (05) - SERVICE & MAINTENANCE

*

-

Engine Oil System

1шт.

1

47535939

ENGINE OIL FILTER,97.5mm OD x 92mm L, M27 x 2, 30 Micron

1шт.

for Cold Weather Regions see the attached Bulletin

1шт.

Engine Crankcase Capacity (W/ Filter Change): 8l (8.45 US qt)

1шт.

Recommended Fluid : TUTELA Unitek CJ-4 Engine Oil SAE 10W-40 (API CJ-4)

1шт.

*

-

Fuel System

1шт.

2

84534796

ELEMENT,Spin-on, M20 x 1.5, 96mm OD x 195mm L

w/o Water in Fuel Sensor

1шт.

3

87803444

FUEL FILTER,79.2mm OD x 109.2mm L

Fuel Filter Inline Canister for Water in Fuel Sensor

1шт.

Fuel Tank Capacity : 159l (42 US gal)

1шт.

Recommended Fluid : No. 2 Diesel

1шт.

*

-

Engine Breather

1шт.

4

5801686484

FILTER

Blow-by (Breather), on Engine

1шт.

*

-

Air Cleaner

1шт.

5

84217229

AIR FILTER,91mm ID x 164.5mm OD x 347mm L

Primary"," on Air Cleaner

1шт.

6

87682999

AIR FILTER,74.1mm ID x 94.6mm OD x 339.5mm L

Secondary"," on Air Cleaner

1шт.

*

-

Hydraulic Oil System

1шт.

7

84475948

FILTER,Spin-on, 13/16” – 16, 97mm OD x 151.6mm L

Transmission

1шт.

*

-

Power Shuttle Transmission

1шт.

Transmission Total Capacity (Power Shuttle 2WD) : 17l (18 US qt)

1шт.

Transmission Total Capacity (Power Shuttle 4WD) : 19.4l (21 US qt)

1шт.

Transmission Refill Capacity (Power Shuttle 2WD) : 10.5l (11 US qt)

1шт.

Transmission Refill Capacity (Power Shuttle 4WD) : 13l (14 US qt)

1шт.

CASE AKCELA HY-TRAN® ULTRA™ Hydraulic Transmission Oil

1шт.

*

-

Powershift S-Type Transmission

1шт.

Transmission Total Capacity (Powershift S-Type 2WD) : 21.7l (22.9 US qt)

1шт.

Transmission Total Capacity (Powershift S-Type 4WD) : 20.7l (21.9 US qt)

1шт.

Transmission Refill Capacity (Powershift S-Type 2WD) : 15.3l (16.2 US qt)

1шт.

Transmission Refill Capacity (Powershift S-Type 4WD) : 14.3l (15.1 US qt)

1шт.

CASE AKCELA HY-TRAN® ULTRA™ Hydraulic Transmission Oil

1шт.

*

-

Powershift H-Type Transmission

1шт.

Transmission Total Capacity (Powershift H-Type 4WD) : 18l (19 US qt)

1шт.

Transmission Refill Capacity (Powershift H-Type 4WD) : 11.4l (12 US qt)

1шт.

CASE AKCELA HY-TRAN® ULTRA™ Hydraulic Transmission Oil

1шт.

8

84255607

HYDRAULIC OIL FILTER,Spin-on, M87 x 2.5, 98.8mm OD x 239.8mm L

on Hydraulic Oil Lines

1шт.

*

-

Hydraulic Oil System W/O Extendahoe

1шт.

Hydraulic System Total Capacity (580N Model) : 106l (112 US qt)

1шт.

Hydraulic System Total Capacity (580SN Model) : 119.2l (126 US qt)

1шт.

Hydraulic System Total Capacity (580SN WT Model) : 124.9l (132 US qt)

1шт.

Hydraulic System Total Capacity (590SN Model) : 132l (139.5 US qt)

1шт.

CASE AKCELA HY-TRAN® ULTRA™ Hydraulic Transmission Oil

1шт.

*

-

Hydraulic Oil System W/ Extendahoe

1шт.

Hydraulic System Total Capacity W/ Extendahoe (580N Model) : 111.7l (118 US qt)

1шт.

Hydraulic System Total Capacity W/ Extendahoe (580SN Model) : 124.9l (132 US qt)

1шт.

Hydraulic System Total Capacity W/ Extendahoe (580SN WT Model) : 130.6l (138 US qt)

1шт.

Hydraulic System Total Capacity W/ Extendahoe (590SN Model) : 137.7l (145.5 US qt)

1шт.

CASE AKCELA HY-TRAN® ULTRA™ Hydraulic Transmission Oil

1шт.

*

-

Hydraulic Oil Reservoir W/ Filter Change

1шт.

Hydraulic Oil Reservoir Capacity (580N"," 580SN"," 580SN WT Models) : 55l (58.1 US qt)

1шт.

Hydraulic Oil Reservoir Capacity (590SN Model) : 50l (52.8 US qt)

1шт.

CASE AKCELA HY-TRAN® ULTRA™ Hydraulic Transmission Oil

1шт.

*

-

Hydraulic Oil Reservoir W/O Filter Change

1шт.

Hydraulic Oil Reservoir Capacity (580N"," 580SN"," 580SN WT Models) : 53l (56 US qt)

1шт.

Hydraulic Oil Reservoir Capacity (590SN Model) : 47l (49.7 US qt)

1шт.

CASE AKCELA HY-TRAN® ULTRA™ Hydraulic Transmission Oil

1шт.

*

-

Front Drive Axle 2WD

1шт.

Front Drive Axle Hub Capacity (each) : 0.8l (0.8 US qt)

1шт.

TUTELA TRANSAXLE Fluid SAE 80W-140

1шт.

*

-

Front Drive Axle 4WD

1шт.

Front Drive Axle Differential Capacity (580N"," 580SN Models) : 7.7l (8.1 US qt)

1шт.

Front Drive Axle Differential Capacity (580SN WT"," 590SN Models) : 8.6l (9.1 US qt)

1шт.

Front Drive Axle Hub Capacity (each) (580N"," 580SN Models) : 0.5l (0.5 US qt)

1шт.

Front Drive Axle Hub Capacity (each) (580SN WT"," 590SN Models) : 1l (1.1 US qt)

1шт.

TUTELA TRANSAXLE Fluid SAE 80W-140

1шт.

*

-

Rear Axle

1шт.

Rear Axle Differential Capacity (580N"," 580SN Models) : 13.6l (14.4 US qt)

1шт.

Rear Axle Differential Capacity (580SN WT"," 590SN Models) : 18.6l (19.7 US qt)

1шт.

TUTELA TRANSAXLE Fluid SAE 80W-140

1шт.

*

-

Cab Air System

1шт.

9

360260A2

CAB FILTER,A/C, 740mm L x 140.4mm W x 50mm Thk, Pleatloc

Air

1шт.

10

377594A5

FILTER

Cab Air recirculation

1шт.

*

-

Cooling System

1шт.

Cooling System Capacity (580N Model W/O Heater) : 16.1l (17 US qt)

1шт.

Cooling System Capacity (580N Model W/ Heater) : 16.8l (17.8 US qt)

1шт.

Cooling System Capacity (580SN"," 580SN WT"," 590SN Models W/O Heater) : 17.3l (18.3 US qt)

1шт.

Cooling System Capacity (580SN"," 580SN WT"," 590SN Models W/ Heater) : 18l (19 US qt)

1шт.

Recommended Fluid : CNH XHD Premix (50% Water and 50% Ethylene glycol)

1шт.
