(84.114.0101) - BOOM - ASSEMBLY

Запчасти Case 580SN (84.114.0101) - BOOM - ASSEMBLY (84) - BOOMS, DIPPERS & BUCKETS

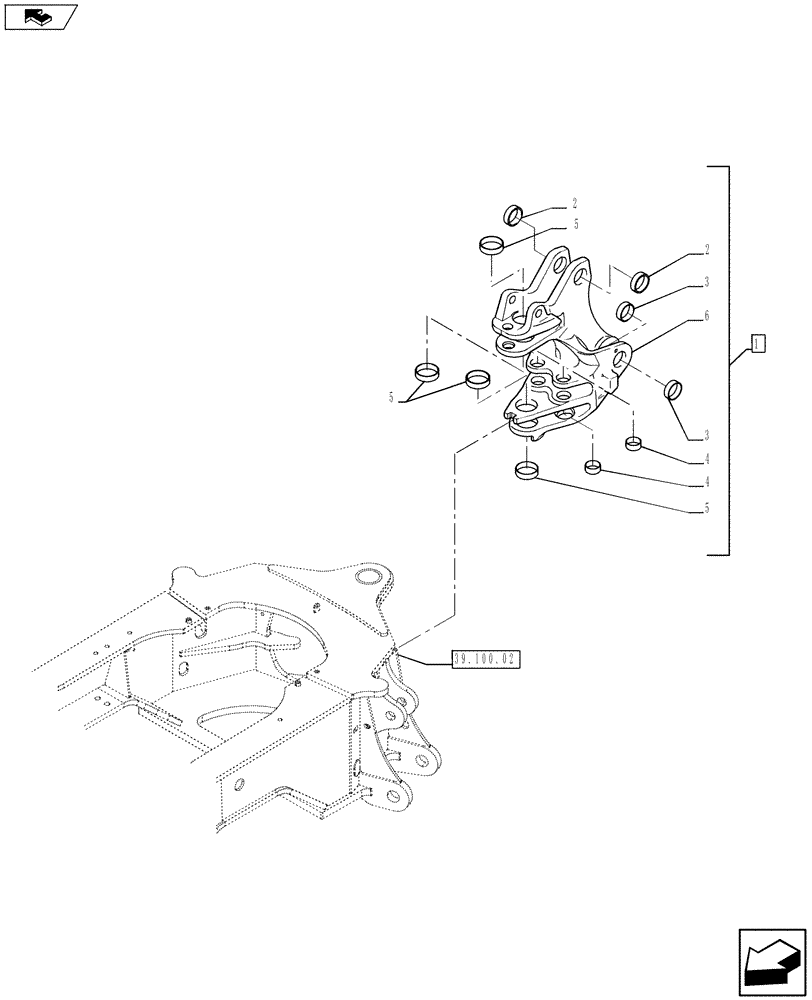

Схема запчастей Case 580SN - (84.114.0101) - BOOM - ASSEMBLY (84) - BOOMS, DIPPERS & BUCKETS
4
5
1
5
5
3
3
home
2
39.100.02
4
6
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84304025

TOWER

Assy, Incl 2 - 6

1шт.

2

84230813

BUSHING,60.19mm ID x 70mm OD x 36mm L

60 x 5 x 36

2шт.

3

84326988

BUSHING,60.19mm ID x 80mm OD x 24mm L

60 x 10 x 24

4шт.

4

135249A1

BUSHING,50.96mm ID x 63.5mm OD x 28.6mm L

50.96 x 6.27 x 28.6

4шт.

5

84235607

BUSHING,80mm ID x 96mm OD x 30mm L

80 x 8 x 30

4шт.

6

NSS

NOT SOLD SEPARAT

Swing Tower, Incl in 1

1шт.
