Запчасти Case 580SN (84.100.23) - DIA KIT, QUICK-HITCH, BUCKET - WR QC30 (84) - BOOMS, DIPPERS & BUCKETS

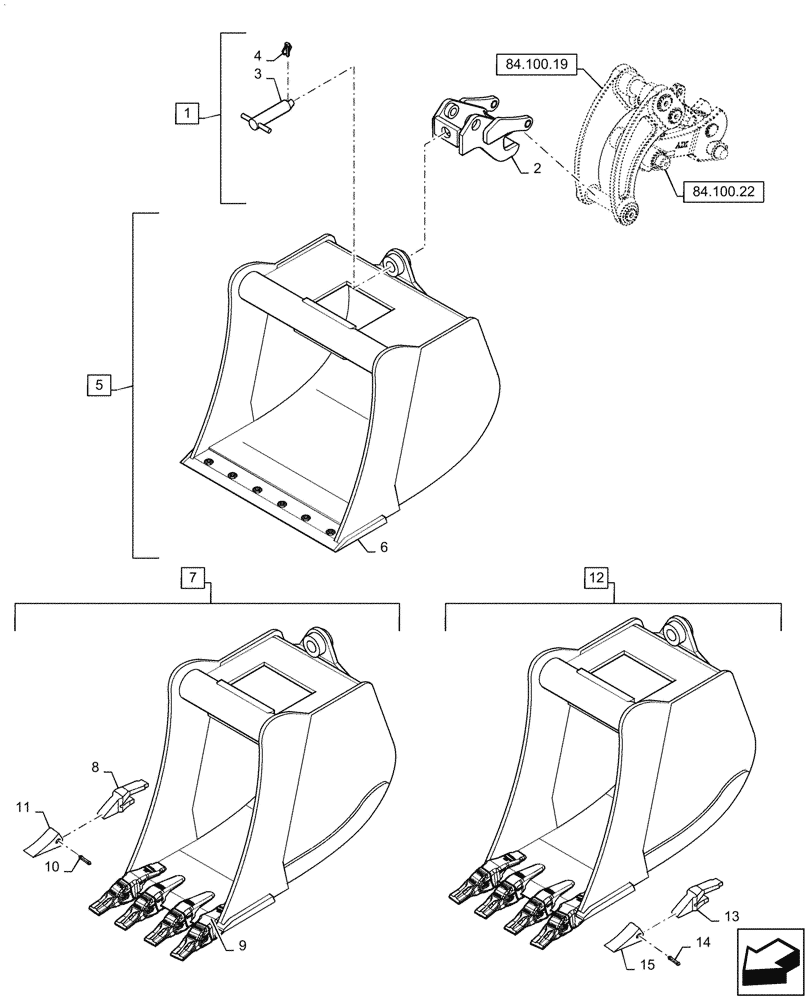

Схема запчастей Case 580SN - (84.100.23) - DIA KIT, QUICK-HITCH, BUCKET - WR QC30 (84) - BOOMS, DIPPERS & BUCKETS
84.100.19
10
6
11
9
12
7
15
3
8
4
2
1
13
14
5
84.100.22

Артикул

Название

Примечание

Количество

1

47670535

QUICK-HITCH

Quick-Hitch, WR QC30 - N-Series, Incl 2 - 4

1шт.

2

47664761

QUICK-HITCH

Quick-Hitch, WR QC30 - N-Series

1шт.

3

47667125

PIN

1шт.

4

87417742

LINCH PIN

1шт.

5

47664759

BUCKET

WR QC30 DITCH CLEANING-36", Incl 6

1шт.

5

47664760

BUCKET

WR QC30 DITCH CLEANING-42", Incl 6

1шт.

6

47394581

CUTTING EDGE

36"

1шт.

6

47533426

CUTTING EDGE,42”, 7 Hole

42"

1шт.

7

47664752

BUCKET

WR QC30 HD - 12", 3 Tooth, Incl 8 - 11

1шт.

7

47664754

BUCKET

WR QC30 HD - 18", 4 Tooth, Incl 8 - 11

1шт.

7

47664755

BUCKET

WR QC30 HD - 24", 5 Tooth, Incl 8 - 11

1шт.

7

47664756

BUCKET

WR QC30 HD - 30", 5 Tooth, Incl 8 - 11

1шт.

7

47664758

BUCKET

WR QC30 HD - 36", 6 Tooth, Incl 8 - 11

1шт.

8

84318729

BUCKET TOOTH SHANK

Center, SF8025M5

1шт.

9

84424392

BUCKET TOOTH SHANK

Corner, SF8025M5CR

1шт.

10

84318739

BUCKET TOOTH KEY

1шт.

11

84318713

BUCKET TOOTH

General Purpose, SF5SYL

1шт.

11

84318733

BUCKET TOOTH

Twin Tiger, SF5UT

1шт.

11

84318735

BUCKET TOOTH

Tiger, SF5TV

1шт.

11

84318736

BUCKET TOOTH

Flare, SF5F

1шт.

12

47689324

BUCKET

WR QC30 HD - 12", 3 Tooth, Incl 12 - 15

1шт.

12

47689325

BUCKET

WR QC30 HD - 18", 4 Tooth, Incl 12 - 15

1шт.

12

47689327

BUCKET

WR QC30 HD - 24", 5 Tooth, Incl 12 - 15

1шт.

12

47689328

BUCKET

WR QC30 HD - 30", 6 Tooth, Incl 12 - 15

1шт.

12

47689329

BUCKET

WR QC30 HD - 36", 8 Tooth, Incl 12 - 15

1шт.

13

D91886

BUCKET TOOTH SHANK

1шт.

14

245466A1

RETAINER,Flexpin, Bucket Tooth

1шт.

15

442689A1

BUCKET TOOTH POINT

23 Series

1шт.

Выбрано товаров: 28
