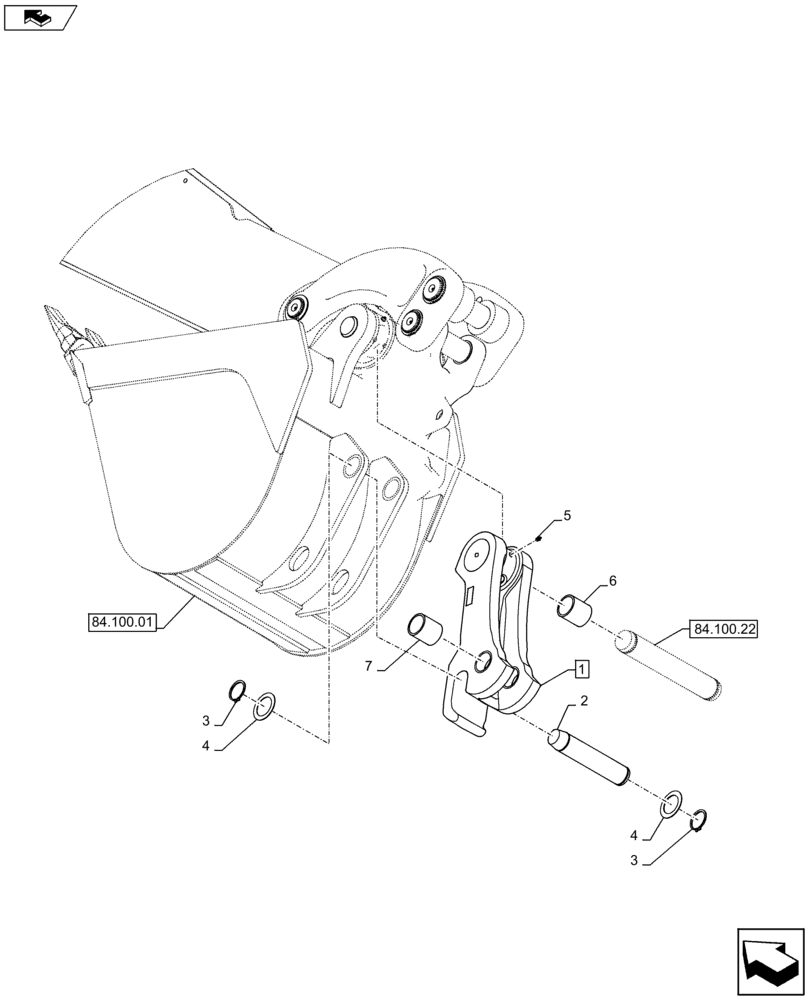

Запчасти Case 580SN (84.100.2105) - BACKHOE BUCKET, MECH. COUPLER, EXTENDABLE DIPPER (84) - BOOMS, DIPPERS & BUCKETS

1

47679454

LINK

Assy, Incl 6 - 7

1шт.

2

84223653

PIN,50mm OD x 246.1mm L

Bucket

1шт.

3

87016943

RING, SNAP,50mm ID , Ext

2шт.

4

495-81227

WASHER,52.38mm ID x 74.63mm OD x 1.7mm Thk

2шт.

5

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

6

84227023

BUSHING,67.75mm ID x 79.98mm OD x 30mm L

2шт.

7

84227018

BUSHING,50.19mm ID x 59.98mm OD x 29mm L

2шт.
