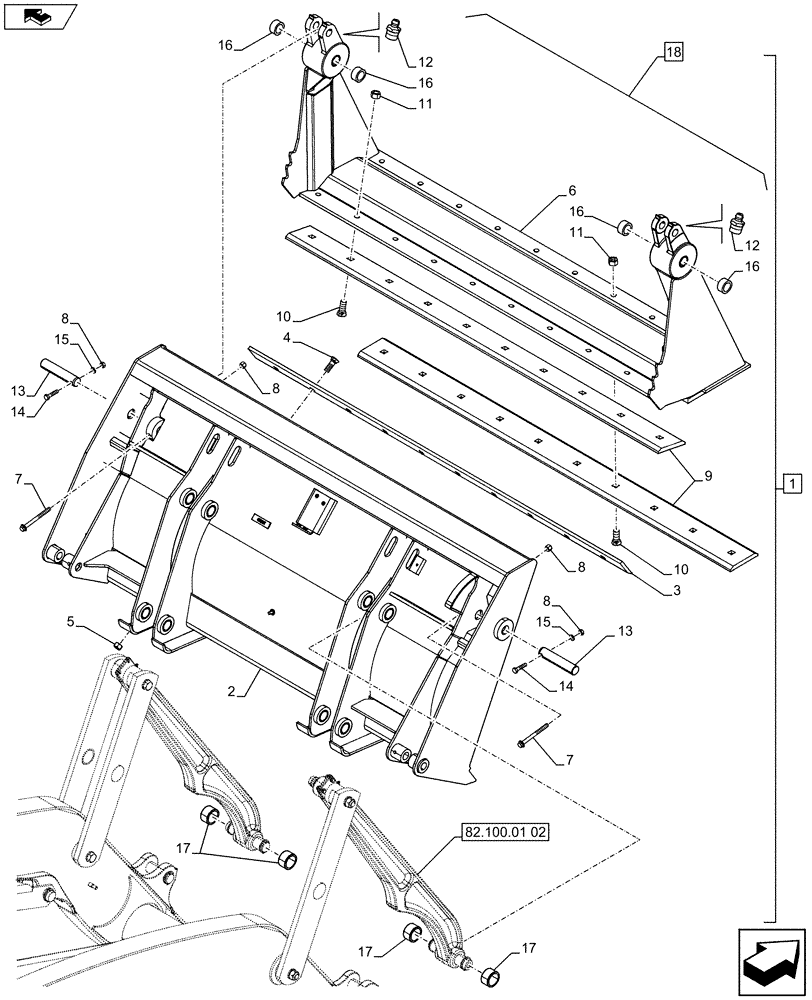

Запчасти Case 580SN (82.100.07[01A]) - VAR - 747863 - BUCKET, 1 YD, 82 INCH/2083MM 4-IN-1 - D7384 - C7385 (82) - FRONT LOADER & BUCKET

1

47565554

BUCKET

ASSY, 1 YD - 82 Inch/2083mm, Incl 2 - 18

1шт.

See Bucket Components also in Figure 35.723.05 (01A), 35.723.0601 (01A)

1шт.

2

376286A2

BUCKET

ASSY, Incl 17

1шт.

3

121920A1

CUTTING EDGE,Bolt On, 10 Holes, 12.7mm W x 2080mm L

1шт.

4

20-21032

PLOW BOLT,#3, 5/8" - 11 x 2", Gr 8

10шт.

5

29-1010

NUT,5/8"-11, G8

10шт.

6

175156A1

CLAMSHELL BUCKET

Front, Incl 16

1шт.

7

844-10110

BOLT,Hvy Hex, M10 x 110mm, Cl 8.8

2шт.

8

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

9

142300A1

CUTTING EDGE,Bolt On, 10 Holes, 19mm W x 2083mm L

2шт.

10

20-21232

PLOW BOLT,#3, 3/4" - 10 x 2", Gr 8

20шт.

11

29-1012

NUT,3/4"-10, G8

20шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

13

86981766

PIVOT PIN

2шт.

14

814-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

2шт.

15

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

16

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

4шт.

17

D129264

BUSHING,40.3mm ID x 50mm OD x 28mm L

8шт.

18

411668A1

BUCKET

ASSY, Incl 2 - 12, 14 - 17

1шт.
