(55.518.0101) - VAR - 423000, 747853, 747854, 747855 - CANOPY, CAB, WIPER MOTOR, WIPER ARM, WIPER BLADE

Запчасти Case 580SN (55.518.0101) - VAR - 423000, 747853, 747854, 747855 - CANOPY, CAB, WIPER MOTOR, WIPER ARM, WIPER BLADE (55) - ELECTRICAL SYSTEMS

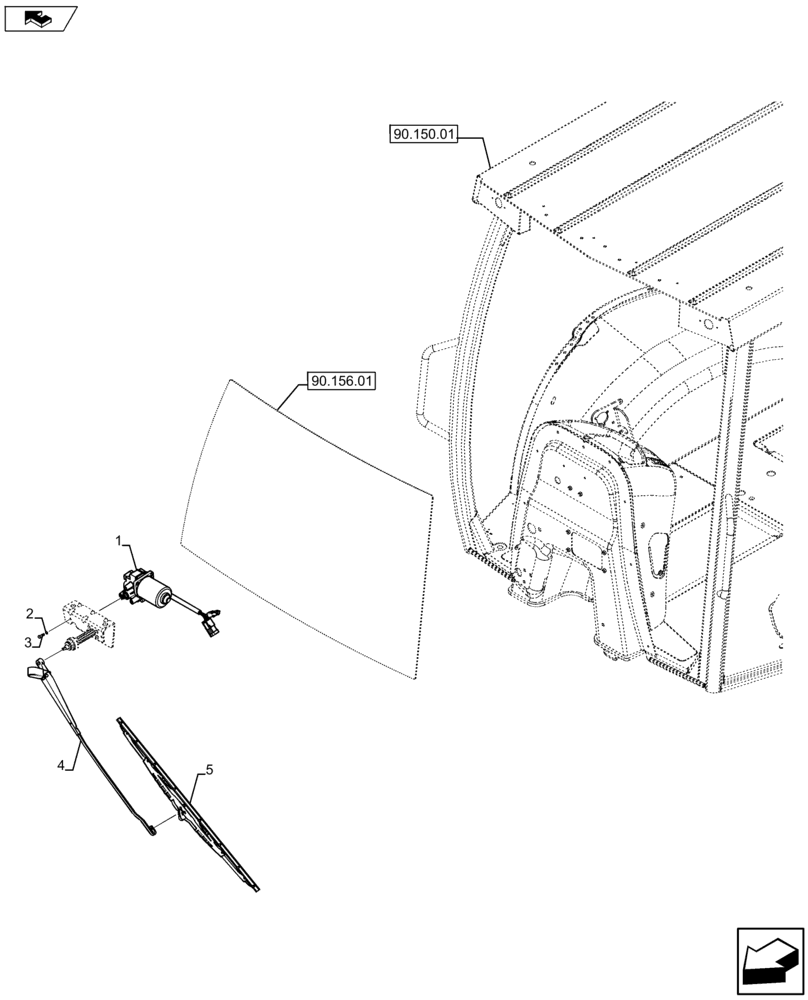

Схема запчастей Case 580SN - (55.518.0101) - VAR - 423000, 747853, 747854, 747855 - CANOPY, CAB, WIPER MOTOR, WIPER ARM, WIPER BLADE (55) - ELECTRICAL SYSTEMS
2
90.156.01
4
90.150.01
5
home
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87669381

WIPER MOTOR,12V

1шт.

2

892-11006

LOCK WASHER,M6

2шт.

3

814-6050

BOLT,Hex, M6 x 1 x 50mm, Cl 8.8

2шт.

4

84562946

WIPER ARM,Single, 550mm

Front

1шт.

W/ Washer Jet & Hose

1шт.

5

87669761

WIPER BLADE,600mm L

Front, 600mm

1шт.
