(44.520.0201) - VAR - 9300014 - WHEELS, REAR - TIRES

Запчасти Case 580SN (44.520.0201) - VAR - 9300014 - WHEELS, REAR - TIRES (44) - WHEELS

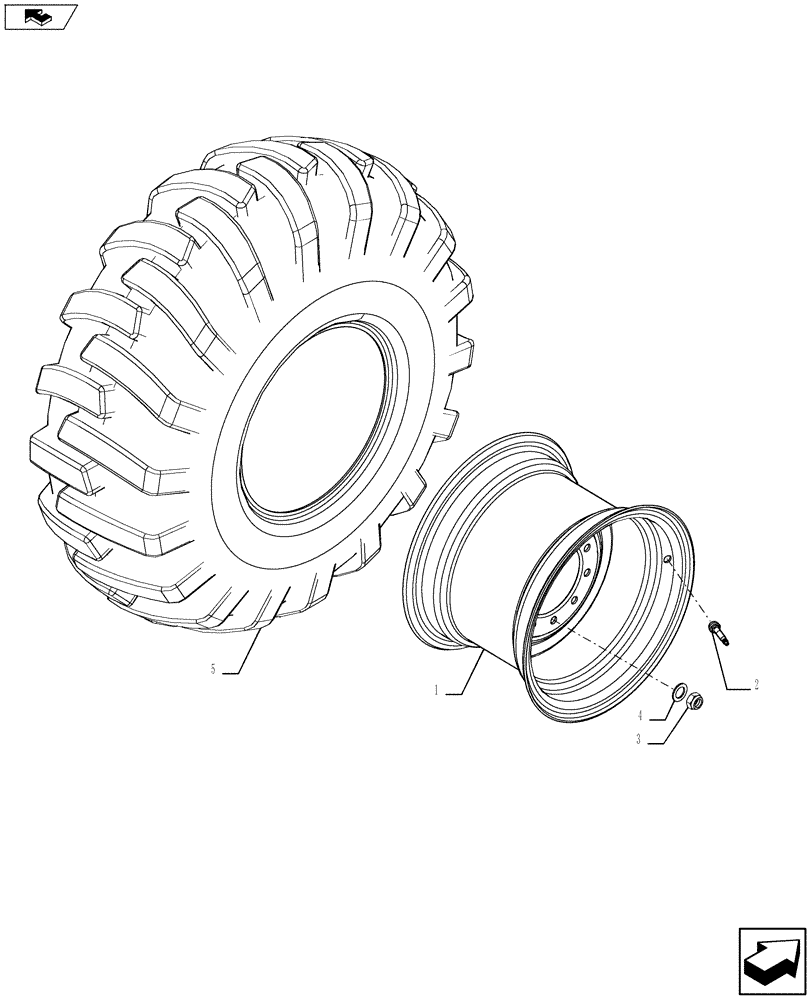

Схема запчастей Case 580SN - (44.520.0201) - VAR - 9300014 - WHEELS, REAR - TIRES (44) - WHEELS
3
5
1
home
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

104907A1

WHEEL,W16Lx24, 10 Holes, CASE Power Tan

W16L x 24

2шт.

2

A20058

VALVE STEM

2шт.

3

D138492

NUT,M22 X 1.5 - 6 HVY HEX

20шт.

4

87313544

WASHER,22mm ID x 44mm OD x 5 mm Thk

20шт.

5

NS

NOT SERVICED

TIRE, 19.5L x 24 10 PLY, Purchase Locally

2шт.
