(44.511.0601) - VAR - 8201110 - WHEELS, FRONT - TIRES - 4WD

Запчасти Case 580SN (44.511.0601) - VAR - 8201110 - WHEELS, FRONT - TIRES - 4WD (44) - WHEELS

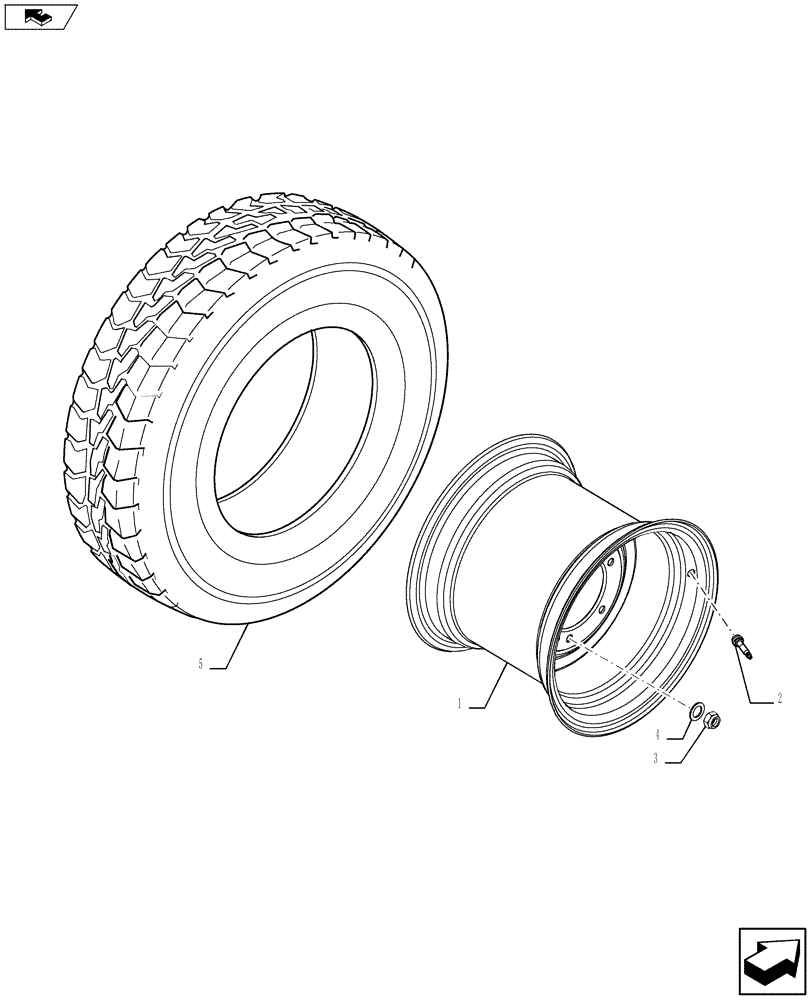

Схема запчастей Case 580SN - (44.511.0601) - VAR - 8201110 - WHEELS, FRONT - TIRES - 4WD (44) - WHEELS
4
home
1
5
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84210060

WHEEL,16.5" DIA x 9.75" W, 8 Bolts, CASE Power Tan

9.75 x 16.5

2шт.

2

387897R91

VALVE STEM

2шт.

3

100092

WHEEL NUT,M18 x 1.5, Cl 8

16шт.

4

496-81000

WASHER,25/32" x 1 3/8" x .134", HDN

16шт.

5

NS

NOT SERVICED

TIRE 12 x 16.5 10 PR, Purchase Locally

2шт.
