(44.511.0501) - VAR - 8101110 - WHEELS, FRONT - TIRES - 2WD

Запчасти Case 580SN (44.511.0501) - VAR - 8101110 - WHEELS, FRONT - TIRES - 2WD (44) - WHEELS

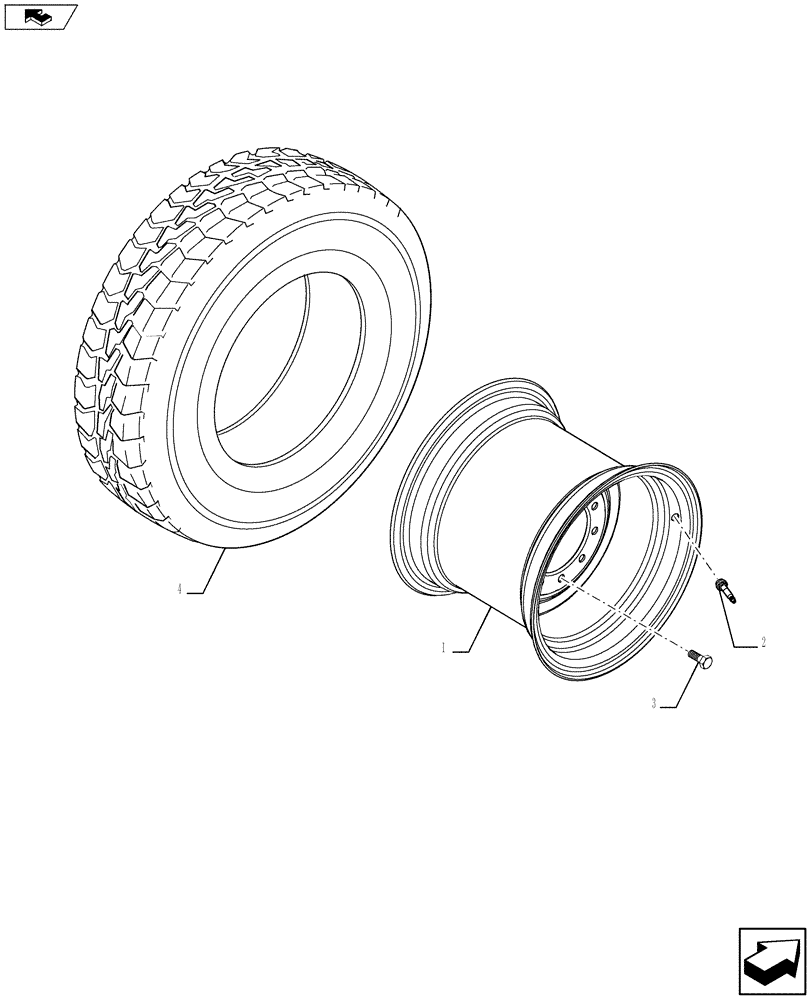

Схема запчастей Case 580SN - (44.511.0501) - VAR - 8101110 - WHEELS, FRONT - TIRES - 2WD (44) - WHEELS
home
3
2
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

D125223

WHEEL,W8Lx16, 8 Holes, CASE Power Tan

2шт.

2

387897R91

VALVE STEM

2шт.

3

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

16шт.

4

NS

NOT SERVICED

TIRE 11L x 16 10 PR, Purchase Locally

2шт.

Выбрано товаров: 0
