(44.511.01) - VAR - 9200019 - WHEELS, FRONT - TIRES - 4WD

Запчасти Case 580SN (44.511.01) - VAR - 9200019 - WHEELS, FRONT - TIRES - 4WD (44) - WHEELS

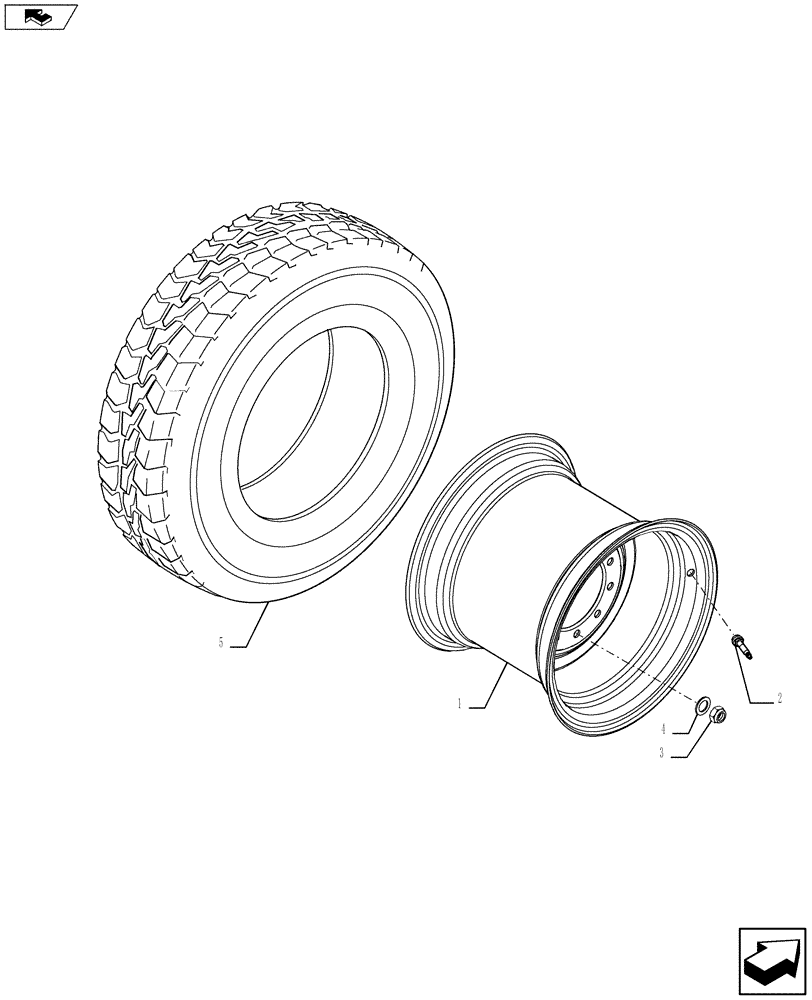

Схема запчастей Case 580SN - (44.511.01) - VAR - 9200019 - WHEELS, FRONT - TIRES - 4WD (44) - WHEELS
2
home
1
5
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

119243A1

WHEEL,16.5x9.75, 8 Holes, CASE Power Tan

2шт.

2

387897R91

VALVE STEM

2шт.

3

100092

WHEEL NUT,M18 x 1.5, Cl 8

16шт.

4

86625248

WASHER,0.78" ID x 1.38" OD x 0.13" Thk

16шт.

5

NS

NOT SERVICED

TIRE, 12 x 16.5 10 PLY, Purchase Locally

2шт.
