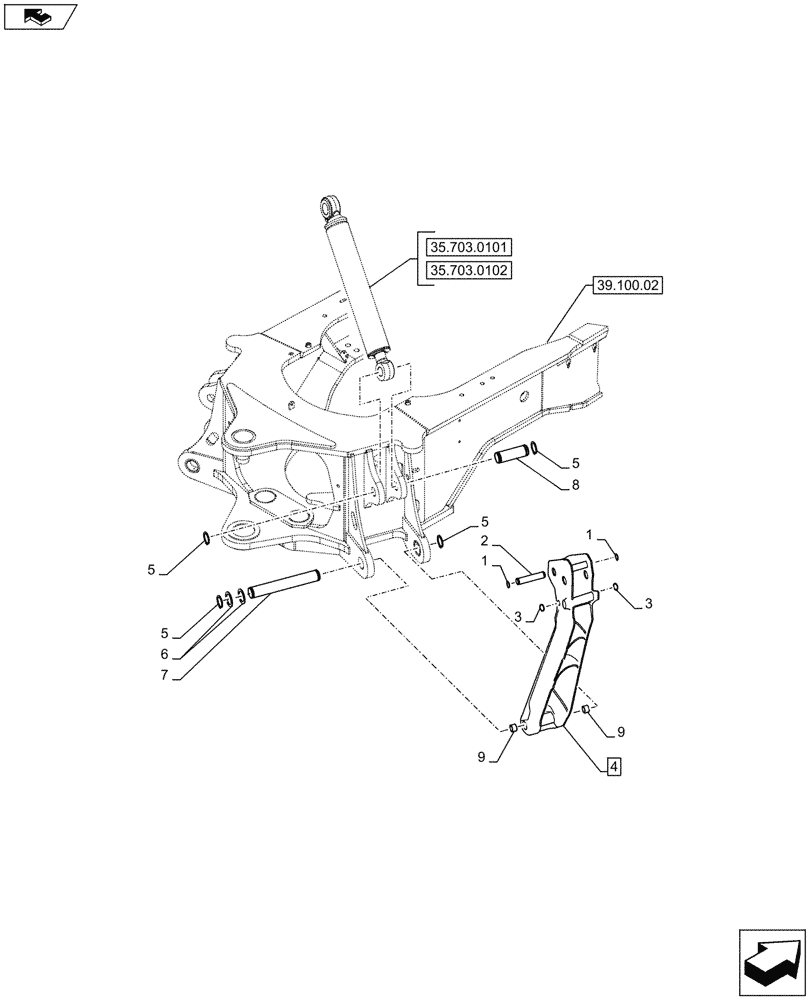

Запчасти Case 580SN (39.129.01) - STABILIZER (39) - FRAMES AND BALLASTING

1

103-16175

SNAP RING,#175, Ext

4шт.

2

84243668

PIN,44.42mm OD x 188mm L

Stabilizer Cylinder

2шт.

3

D143406

WASHER,38.23mm ID x 63.88mm OD x 2.9mm Thk

8шт.

4

84300023

STABILIZER

Assy, Incl 9

2шт.

5

84233536

RING,55mm ID, Ext

8шт.

6

84231927

SHIM,57mm ID x 70mm OD x 2.77mm Thk

4шт.

7

84243665

PIN,54.9mm OD x 305.5mm L

Stabilizer Arm

2шт.

8

84243667

PIN,54.9mm OD x 148mm L

Stabilizer Cylinder

2шт.

9

84229922

BUSHING,55.19mm ID x 65mm OD x 38mm L

2шт.
