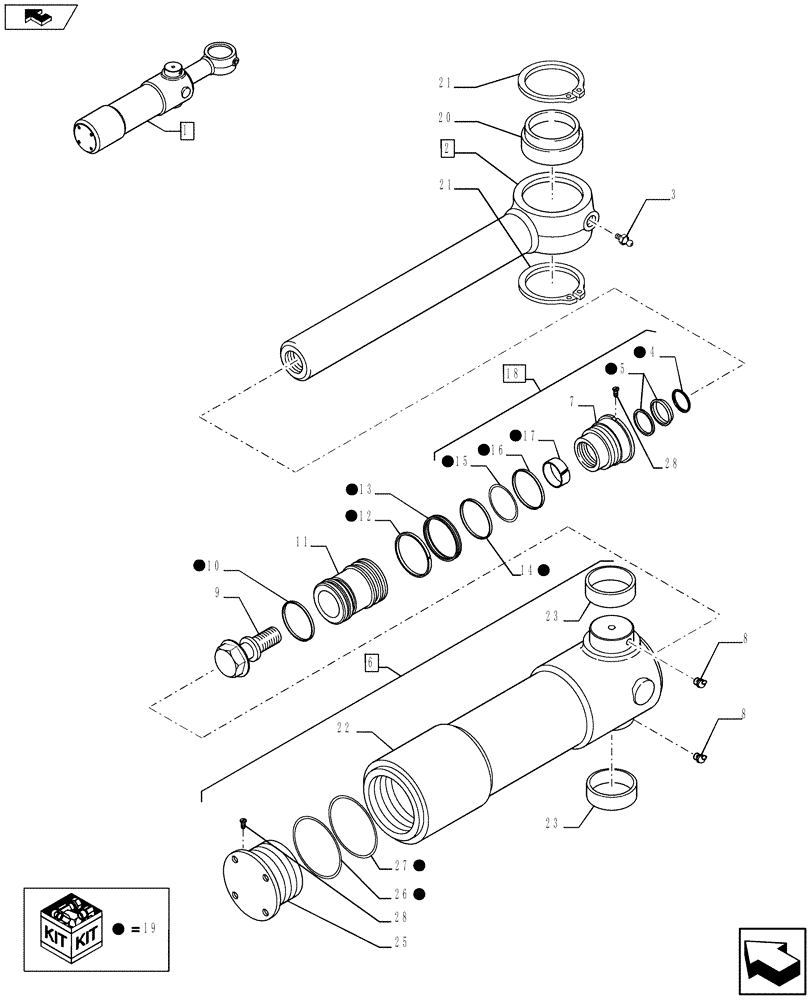

Запчасти Case 580SN (35.739.0202) - CYLINDER - BACKHOE SWING (35) - HYDRAULIC SYSTEMS

1

84428583

HYDRAULIC CYLINDER,Double Acting, 50.8mm Rod, 101.6mm Bore, 292mm Stroke

Assy, Incl 2 - 18

1шт.

2

87413722

PISTON ROD

Assy, Incl 20 - 21

1шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

4

NSS

NOT SOLD SEPARAT

1шт.

5

NSS

NOT SOLD SEPARAT

1шт.

6

199953A2

BARREL

Assy, Incl 22 - 28

1шт.

7

297283A1

GLAND

1шт.

8

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

2шт.

9

86982439

SPECIAL BOLT,Hex, 14, 1 x 4"

1шт.

10

NSS

NOT SOLD SEPARAT

1шт.

11

112370A4

JACK PISTON

1шт.

12

NSS

NOT SOLD SEPARAT

1шт.

13

NSS

NOT SOLD SEPARAT

1шт.

14

NSS

NOT SOLD SEPARAT

1шт.

15

NSS

NOT SOLD SEPARAT

1шт.

16

NSS

NOT SOLD SEPARAT

1шт.

17

NSS

NOT SOLD SEPARAT

1шт.

18

1543028C1

GLAND

Assy, Incl 4 - 5, 7, 15 - 17

1шт.

19

122535A1

SEAL KIT

Repair, Incl 4 - 5, 10, 12 - 17, 26 - 27

1шт.

20

137248A1

RING,50.79mm ID x 80.96mm OD x 44.45mm W

1шт.

21

100-21315

SNAP RING,3.156", Int, #315

2шт.

22

139810A2

TUBE,101.37mm Bore Dia

1шт.

23

124568A2

RING,69.92mm ID x 77mm OD x 28mm L

2шт.

24

124463A1

CYLINDER END CAP

Assy, Incl 25 - 28

1шт.

25

124462A1

CYLINDER END CAP

1шт.

26

NSS

NOT SOLD SEPARAT

1шт.

27

NSS

NOT SOLD SEPARAT

1шт.

28

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

2шт.
