(35.737.0205) - DIPPER, CYLINDER

Запчасти Case 580SN (35.737.0205) - DIPPER, CYLINDER (35) - HYDRAULIC SYSTEMS

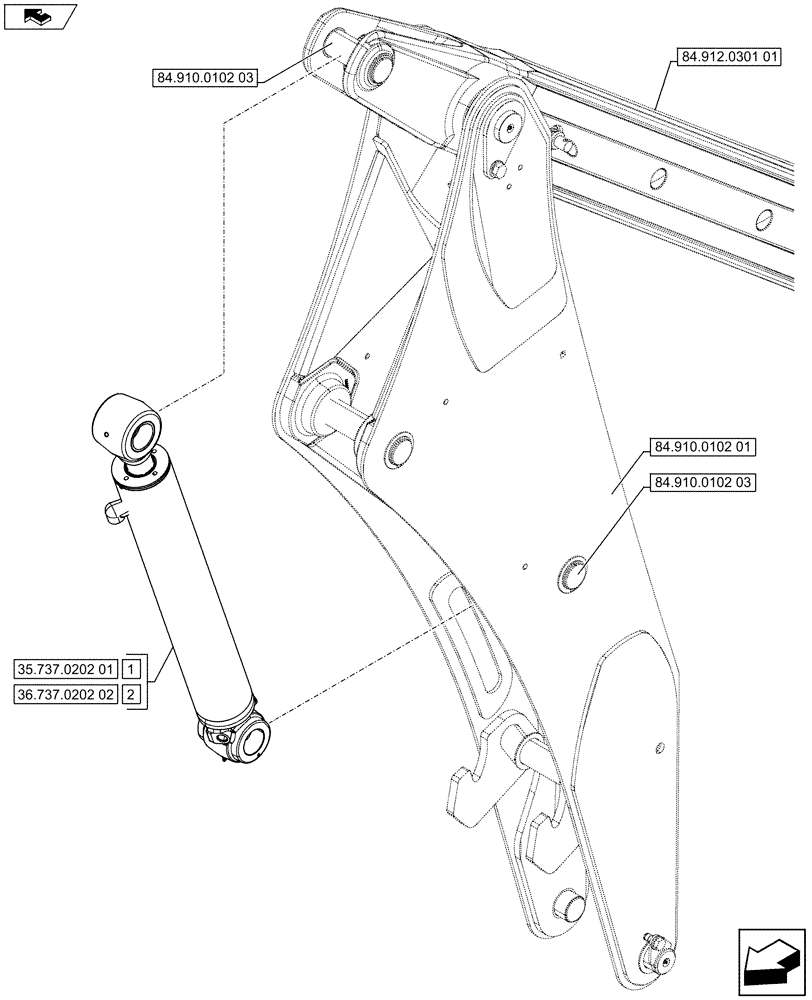

Схема запчастей Case 580SN - (35.737.0205) - DIPPER, CYLINDER (35) - HYDRAULIC SYSTEMS
84.910.0102 01
1
2
home
84.912.0301 01
35.737.0202 01
36.737.0202 02
84.910.0102 03
84.910.0102 03
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84421591

HYDRAULIC CYLINDER,Double Acting, 63.5mm Rod, 628.5mm Stroke

120.7mm x 63.5mm, ASSY, Serial Range: -C9057

1шт.

2

47458141

HYDRAULIC CYLINDER,63.5mm Rod, 120.7mm Bore, 628.5mm Stroke

120.7mm x 63.5mm, ASSY, Start Serial: D9057

1шт.

Выбрано товаров: 2
