Запчасти Case 580SN (35.737.0202[01]) - DIPPER CYLINDER - C9057 (35) - HYDRAULIC SYSTEMS

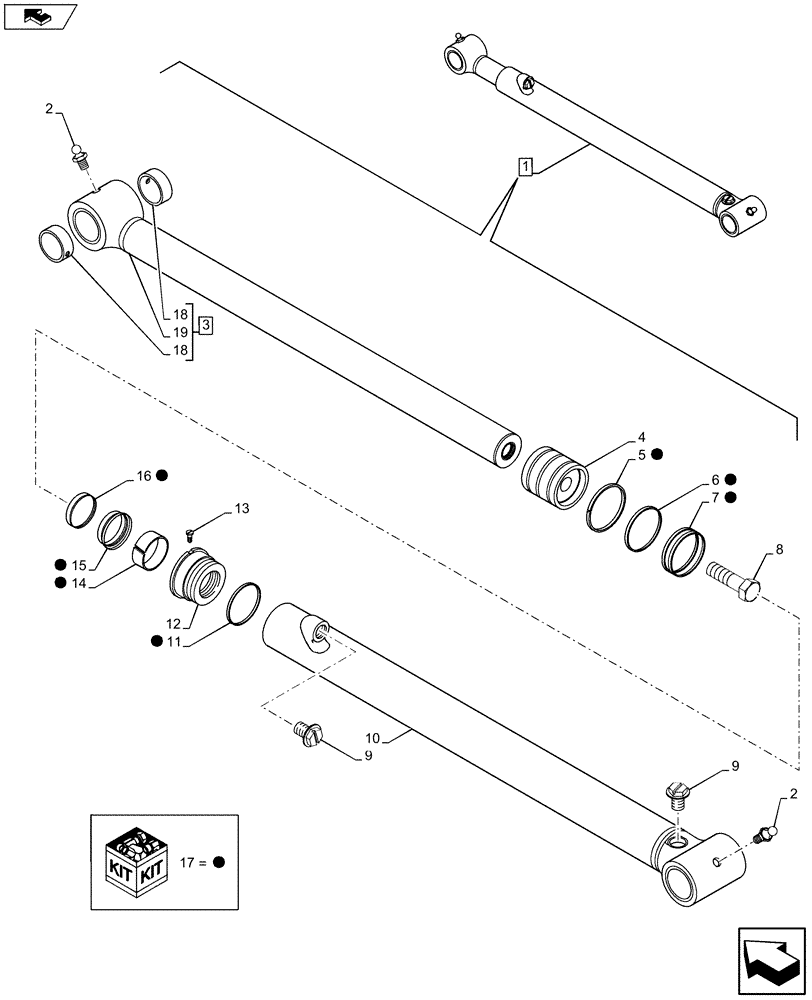

Схема запчастей Case 580SN - (35.737.0202[01]) - DIPPER CYLINDER - C9057 (35) - HYDRAULIC SYSTEMS
5
6
9
17
home
17
13
17
17
17
10
3
12
18
14
17
2
17
18
1
11
16
17
2
15
4
9
8
7
19

Артикул

Название

Примечание

Количество

1

84421591

HYDRAULIC CYLINDER,Double Acting, 63.5mm Rod, 628.5mm Stroke

Assy, Incl 2 - 19

1шт.

1

47458141R

REMAN-HYD CYLINDER

Double Acting, 63.5mm Rod, 628.5mm Stroke

1шт.

1

47458141C

CORE-HYD CYLINDER

Return Number

1шт.

2

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

3

84204342

ROD,63.5mm OD x 842.67mm L

Assy, Incl 18, 19

1шт.

4

84288837

PISTON ROD/GLAND,120.01mm Bore, 63.58mm Rod, 75.93mm W

1шт.

5

446195A1

SEALING RING,Split, 114.27mm ID x 120.62mm OD x 19.05mm Thk

1шт.

6

87402621

O-RING,Locking, 110.89mm ID x 120.55mm OD x 6.33mm Thk

1шт.

7

87715788

SEAL,120.7mm OD

1шт.

8

86982443

SPECIAL BOLT,1" 3/8 x 3.50 L

1шт.

9

353-782

PLUG,Slotted, 1 1/16"-12

2шт.

10

84288845

BARREL

1шт.

11

84153643

SEAL,112.52mm ID x 119.68mm OD x 4.85mm Thk

1шт.

12

84150048

GLAND,120.7MM BORE, 63.5MM ROD

1шт.

13

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

14

G109908

BUSHING,63.5mm ID x 66.57mm OD x 25.15mm L

1шт.

15

1542879C1

SEAL KIT,63.5mm Rod x 88.9mm Bore

1шт.

16

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

1шт.

17

84259222

SEAL KIT,63.5mm Rod x 120.70mm Bore

1шт.

18

1346101C1

RING,60.19mm ID x 70mm OD x 39mm L

2шт.

19

NSS

NOT SOLD SEPARAT

Rod, Incl in 3

1шт.

Выбрано товаров: 21
