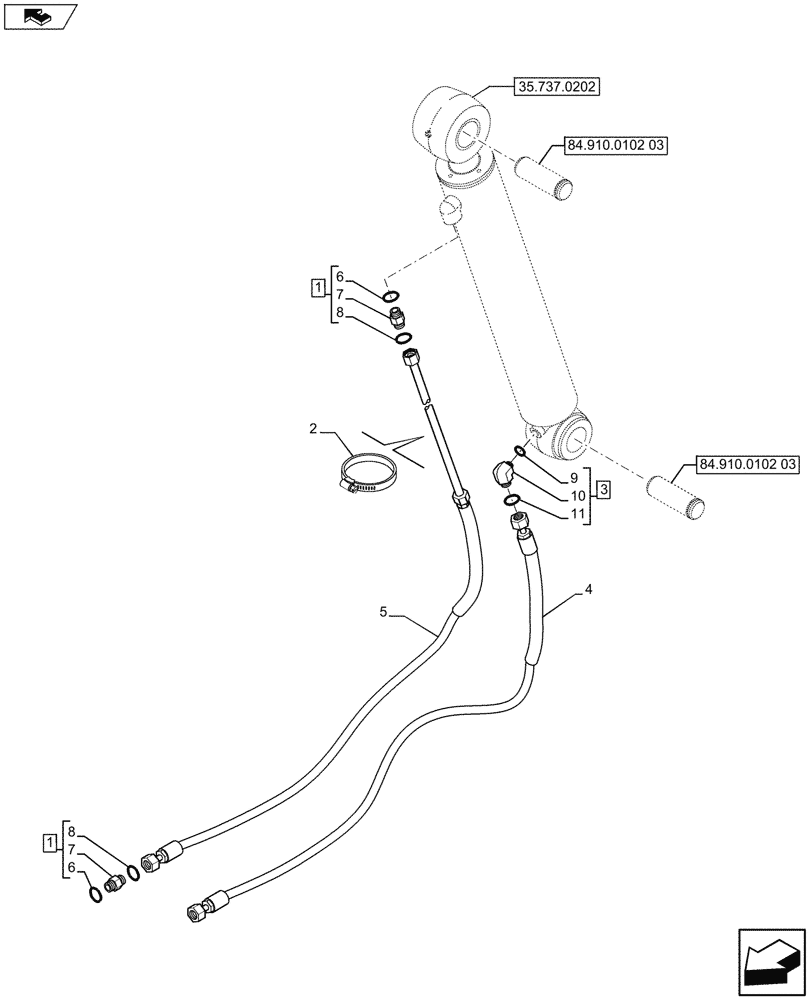

Запчасти Case 580SN (35.737.0102) - DIPPER CYLINDER LINES (35) - HYDRAULIC SYSTEMS

1

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Assy, Incl 6 - 8

3шт.

2

214-1496

HOSE CLAMP,#96, 5.56" - 6.5", Type F Worm

2шт.

3

201-341

ELBOW,90 Degree, 1"-14 x 1 1/16"-12, Adj, ORFS

Assy, Incl 9 - 11

2шт.

4

84257621

HYDRAULIC HOSE,15.88mm ID x 2073mm L, SAE 100R16

to Dipper Cylinder Head

1шт.

5

84287836

HYD TUBE

to Dipper Cylinder Rod

1шт.

6

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

7

NSS

NOT SOLD SEPARAT

Hyd Connector; Incl in 1

1шт.

8

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

10

NSS

NOT SOLD SEPARAT

Elbow; Incl in 3

1шт.

11

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.
