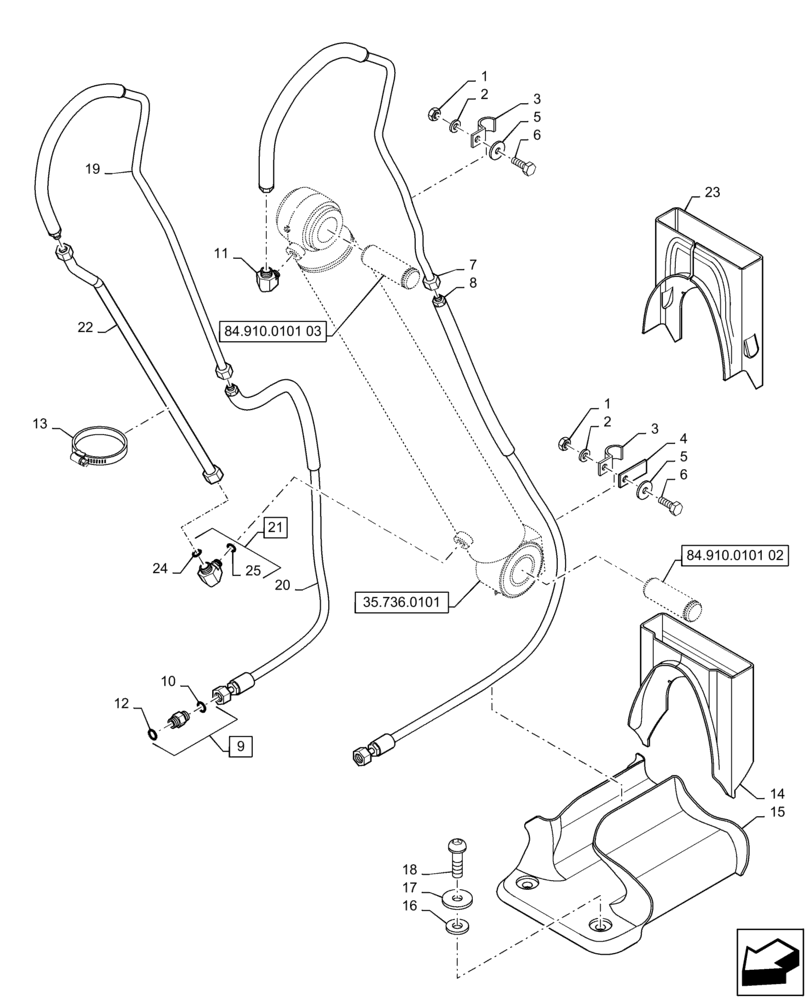

Запчасти Case 580SN (35.736.0201) - BOOM CYLINDER LINES (35) - HYDRAULIC SYSTEMS

1

412141

NUT,M10 x 1.5, Cl 8

4шт.

2

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

4шт.

3

84367726

CLAMP,3/4" Clamping tube

4шт.

4

84259030

SPACER

2шт.

5

87687101

WASHER,10.65mm ID x 31mm OD x 3.3mm Thk

4шт.

6

120071

BOLT,Hex, M10 x 65, 8.8

4шт.

7

84257628

HYD TUBE

to Boom Cylinder (Head Side)

1шт.

8

84257632

HYDRAULIC HOSE,15.88mm ID x 2043mm L, SAE 100R16

to Boom Cylinder (Head Side)

1шт.

9

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Assy, Incl 10 - 12

2шт.

10

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

11

NSS

NOT SOLD SEPARAT

Hyd. connector

1шт.

12

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

13

214-3196

HOSE CLAMP,5-1/4" - 6-1/8", HD Worm

2шт.

14

84303528

GUARD

, Serial Range: -C9005

1шт.

15

84303525

GUARD

1шт.

16

84286039

SPACER,13.87mm ID x 21.34mm OD x 5.4mm Thk

2шт.

17

9511052

WASHER,13.5mm ID x 44mm OD x 4mm Thk

2шт.

18

84299393

HEX SOC SCREW,Hex Socket Button Head, M12 x 1.75 x 35mm, Cl. 10.9

2шт.

19

84280749

HYD TUBE

to Boom Cylinder (Rod Side)

1шт.

20

84263635

HYDRAULIC HOSE,15.88mm ID x 2064mm L, SAE 100R16

to Boom Cylinder (Rod Side)

1шт.

21

87656136

HYD CONNECTOR

Incl 24 - 25

2шт.

22

84257622

HYD TUBE

to Boom Cylinder (Rod Side)

1шт.

23

84574630

GUARD

, Start Serial: D9005

1шт.

24

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

25

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.
