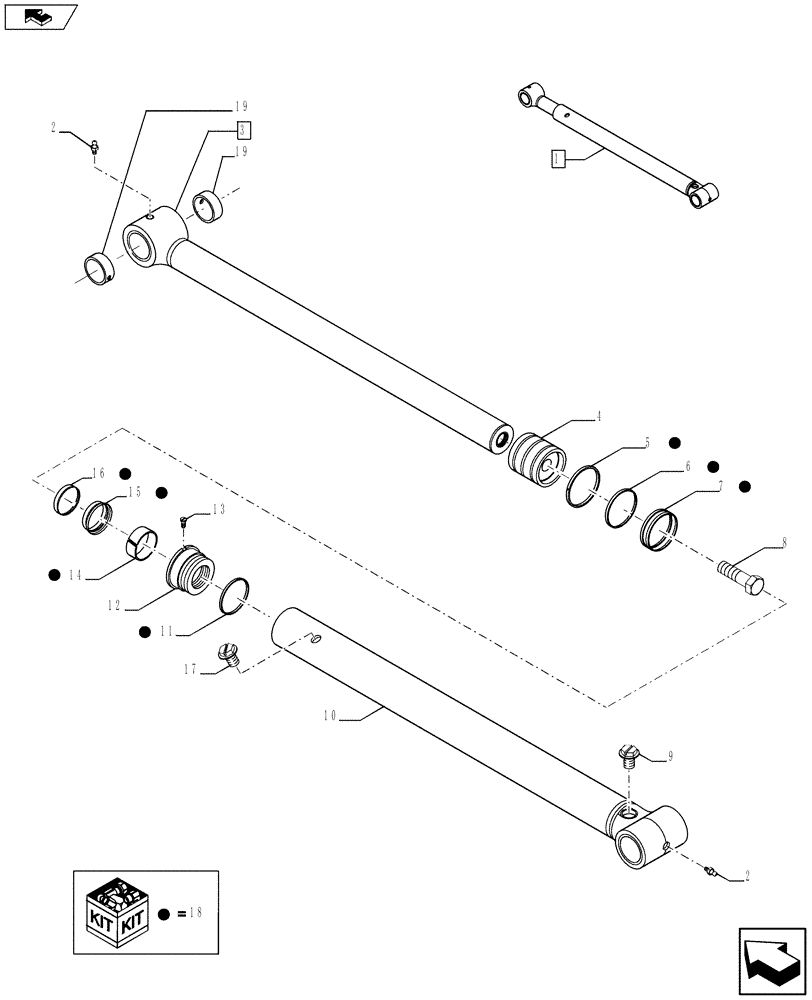

Запчасти Case 580SN (35.736.0102) - BOOM CYLINDER (35) - HYDRAULIC SYSTEMS

1

84421588

HYDRAULIC CYLINDER,Double Acting, 63.5mm Rod, 127.0mm Bore, 971.6mm Stroke

Assy, Incl 2 - 19

1шт.

2

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

3

84321895

ROD,63.5mm OD x 1241.2mm L

Assy, Incl 19

1шт.

4

84204689

PISTON ROD/GLAND

1шт.

5

NSS

NOT SOLD SEPARAT

Part Of Kit Reference 18

1шт.

6

NSS

NOT SOLD SEPARAT

Part Of Kit Reference 18

1шт.

7

NSS

NOT SOLD SEPARAT

Part Of Kit Reference 18

1шт.

8

86982443

SPECIAL BOLT,1" 3/8 x 3.50 L

1шт.

9

353-780

PLUG,Sltd Hd, 7/8"-14, w/O-Ring

1шт.

10

84394386

BARREL,126.85mm Bore Dia

1шт.

11

NSS

NOT SOLD SEPARAT

Part Of Kit Reference 18

1шт.

12

84205602

GLAND

1шт.

13

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

14

NSS

NOT SOLD SEPARAT

1шт.

15

NSS

NOT SOLD SEPARAT

1шт.

16

NSS

NOT SOLD SEPARAT

1шт.

17

353-782

PLUG,Slotted, 1 1/16"-12

1шт.

18

84259219

SEAL KIT,63.5mm Rod x 127.0mm Bore

1шт.

19

123407A1

BUSHING,60.19mm ID x 70mm OD x 28mm L

2шт.
