Запчасти Case 580SN (35.734.02[01]) - VAR - 442017 - BACKHOE BUCKET, COUPLING, HYDRAULIC CYLINDER (35) - HYDRAULIC SYSTEMS

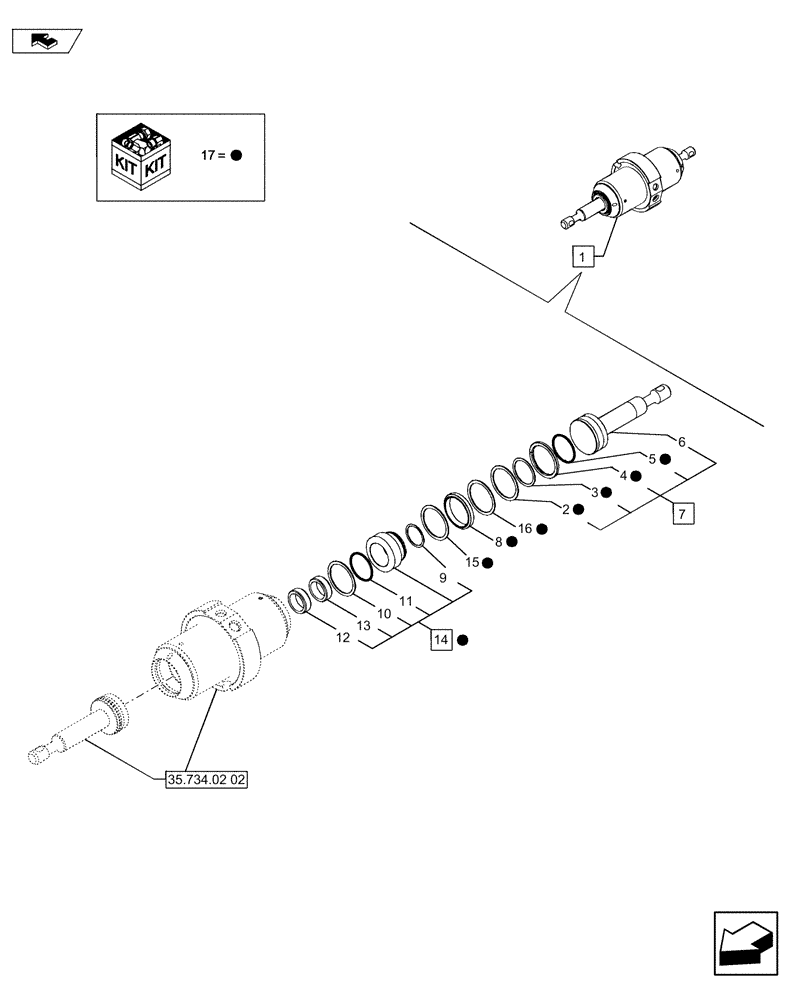

Схема запчастей Case 580SN - (35.734.02[01]) - VAR - 442017 - BACKHOE BUCKET, COUPLING, HYDRAULIC CYLINDER (35) - HYDRAULIC SYSTEMS
17
16
11
35.734.02 02
9
7
5
17
17
15
10
2
1
12
8
17
6
3
4
17
17
17
13
14
home
17

Артикул

Название

Примечание

Количество

1

84270939

HYDRAULIC CYLINDER,Double Acting, 19.1mm Rod, 80.6mm Stroke

Assy, Incl 2 - 18

1шт.

1

84270939R

REMAN-HYD CYLINDER

Reman For New PN 84270939

1шт.

1

84270939C

CORE-HYD CYLINDER

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

1шт.

3

NSS

NOT SOLD SEPARAT

1шт.

4

NSS

NOT SOLD SEPARAT

1шт.

5

NSS

NOT SOLD SEPARAT

1шт.

6

399907A2

ROD,19.1mm Dia, 38.1mm Bore x 100.50mm L

1шт.

7

399909A3

ROD,19.1mm Dia, 38.1mm Bore

1шт.

8

NSS

NOT SOLD SEPARAT

1шт.

9

A44651

WIPER SEAL,18.49mm ID x 25.3mm OD x 3.63mm Thk

1шт.

10

87615853

BACK-UP RING,32mm ID x 38mm OD x 1.09mm Thk

1шт.

11

238-6218

O-RING,0.139" Thk x 1.234" ID, -218, Cl 6, 90 Duro

1шт.

12

311466A2

1шт.

13

D83187

SEAL,19.05mm ID x 25.4mm OD x 7.18mm W

1шт.

14

NSS

NOT SOLD SEPARAT

1шт.

15

NSS

NOT SOLD SEPARAT

1шт.

16

NSS

NOT SOLD SEPARAT

1шт.

17

84270949

SEAL KIT

1шт.

18

NSS

NOT SOLD SEPARAT

1шт.

Выбрано товаров: 20
