(35.726.56[03A]) - BACKHOE CONTROL VALVE, SWING SECTION - D9006

Запчасти Case 580SN (35.726.56[03A]) - BACKHOE CONTROL VALVE, SWING SECTION - D9006 (35) - HYDRAULIC SYSTEMS

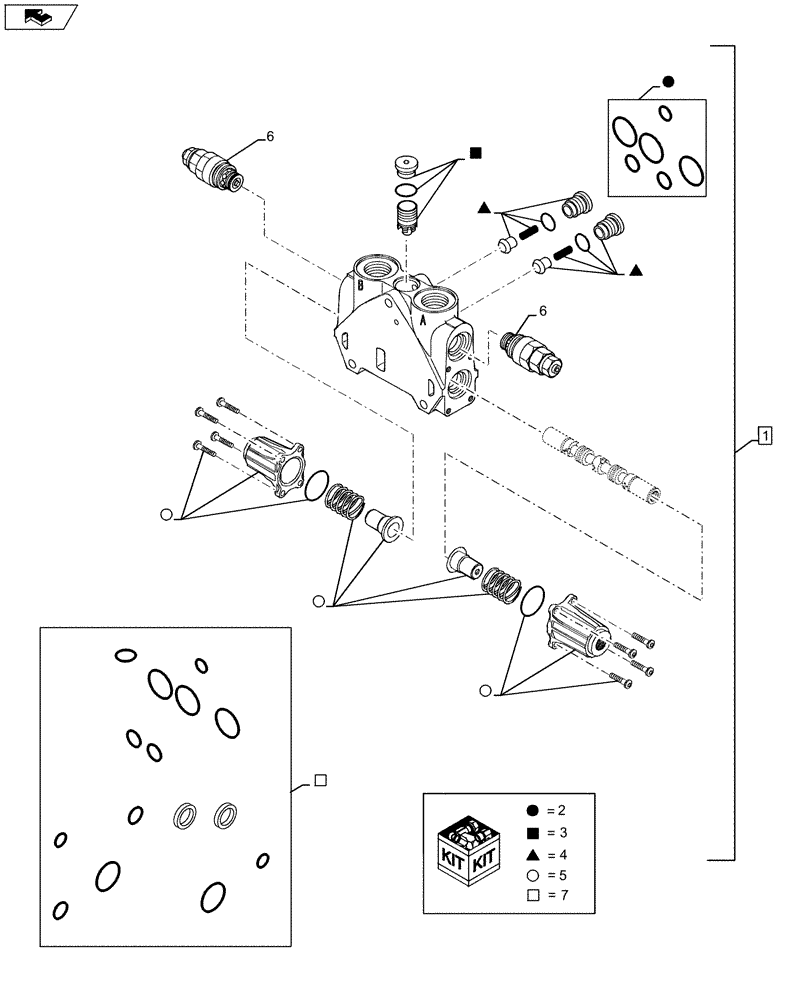

Схема запчастей Case 580SN - (35.726.56[03A]) - BACKHOE CONTROL VALVE, SWING SECTION - D9006 (35) - HYDRAULIC SYSTEMS
2
4
6
7
1
3
7
home
4
3
6
2
4
5
5
5
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84586031

HYD VALVE SECTION

Swing Section, Assy, Incl 2 - 9

1шт.

2

85819148

SEAL KIT,Between Control Valve Sections

1шт.

3

85826345

KIT,Pressure Compensator

1шт.

4

85811938

KIT,Check Valve

1шт.

5

85826344

KIT,Operation

1шт.

6

84586582

VALVE PRESSURE RELIE,205 Bar

Assy, Incl 8

1шт.

7

85824281

SEAL KIT,Control Valve Section, Complete

1шт.
