(35.726.54) - 3-SECTION CONTROL VALVE - PRESSURE CONTROL VALVE - W/ PILOT CONTROLS

Запчасти Case 580SN (35.726.54) - 3-SECTION CONTROL VALVE - PRESSURE CONTROL VALVE - W/ PILOT CONTROLS (35) - HYDRAULIC SYSTEMS

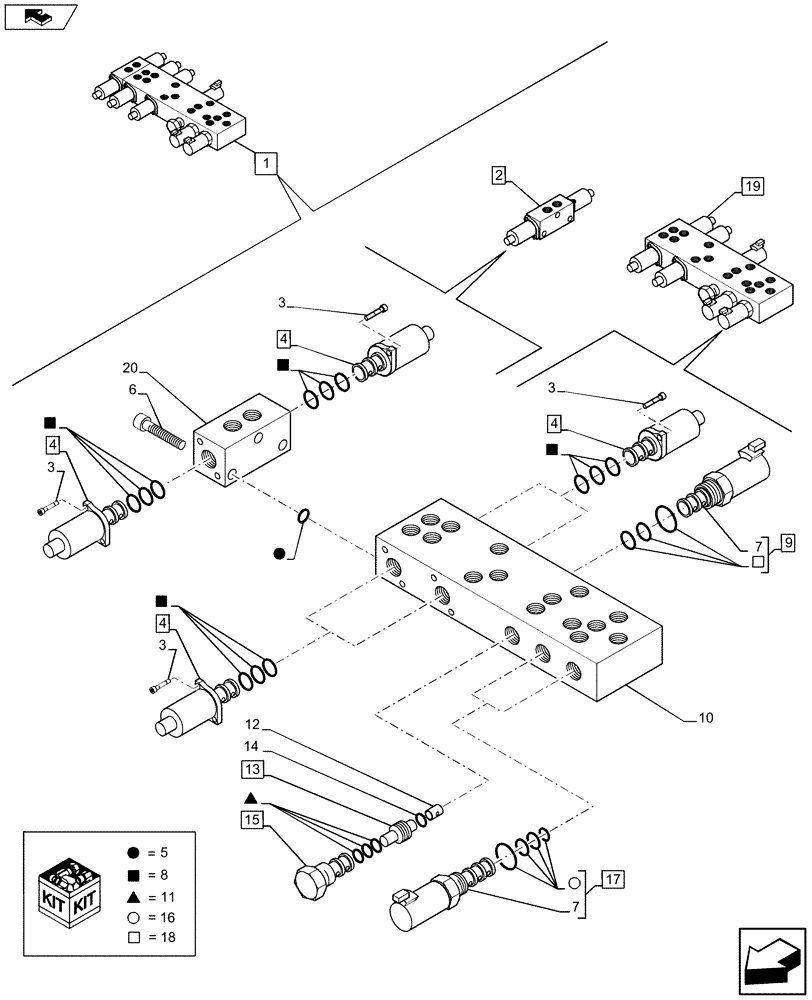

Схема запчастей Case 580SN - (35.726.54) - 3-SECTION CONTROL VALVE - PRESSURE CONTROL VALVE - W/ PILOT CONTROLS (35) - HYDRAULIC SYSTEMS
3
5
4
5
10
5
8
4
11
17
3
9
2
12
11
18
19
15
7
13
home
1
20
8
3
6
5
4
3
16
7
16
14
12
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

85827471

HYDRAULIC VALVE

Assy, Incl 2 - 20

1шт.

2

85828004

BODY

Assy, Incl 3 - 6

1шт.

3

14302921

HEX SOC SCREW,M4 x 10mm, Cl 8.8, Full Thd

12шт.

4

85827993

SOLENOID VALVE

Assy, Incl 5

6шт.

RH/LH Stab. Retract PWM, RH/LH Stab. Extend PWM & Extendahoe Retract PWM, Extendahoe Extend PWM

1шт.

5

85827999

SEAL KIT

1шт.

6

14358921

HEX SOC SCREW,M5 x 50mm, Cl 8.8

3шт.

7

85827995

COIL

3шт.

8

85828000

SEAL KIT

6шт.

9

85827994

SOLENOID VALVE

Assy, Incl 7 - 8

1шт.

Joystick Enable Solenoid

1шт.

10

85828013

BLOCK

1шт.

11

85828001

SEAL KIT

1шт.

12

85828005

ORIFICE

1шт.

13

85827992

CHECK VALVE

Assy, Incl 14

1шт.

14

85828003

O-RING,1mm Thk x 9mm ID

1шт.

15

85827997

VALVE

Assy, Incl 16

1шт.

16

85828002

SEAL KIT

2шт.

17

85827996

SOLENOID VALVE,2 Section

Assy, Incl 7, 18

2шт.

Pattern Change Solenoids

1шт.

18

85827998

SEAL KIT

1шт.

19

85828015

BLOCK

Assy, 3 - 5, 7 - 18

1шт.

20

NSS

NOT SOLD SEPARAT

Block, Incl in 2

1шт.

Extension Block added for Optional Extendahoe

1шт.
