(35.726.36[02]) - CONTROL - BACKHOE, WITH FOOT SWING (WITHOUT EXTENDABLE DIPPER)

Запчасти Case 580SN (35.726.36[02]) - CONTROL - BACKHOE, WITH FOOT SWING (WITHOUT EXTENDABLE DIPPER) (35) - HYDRAULIC SYSTEMS

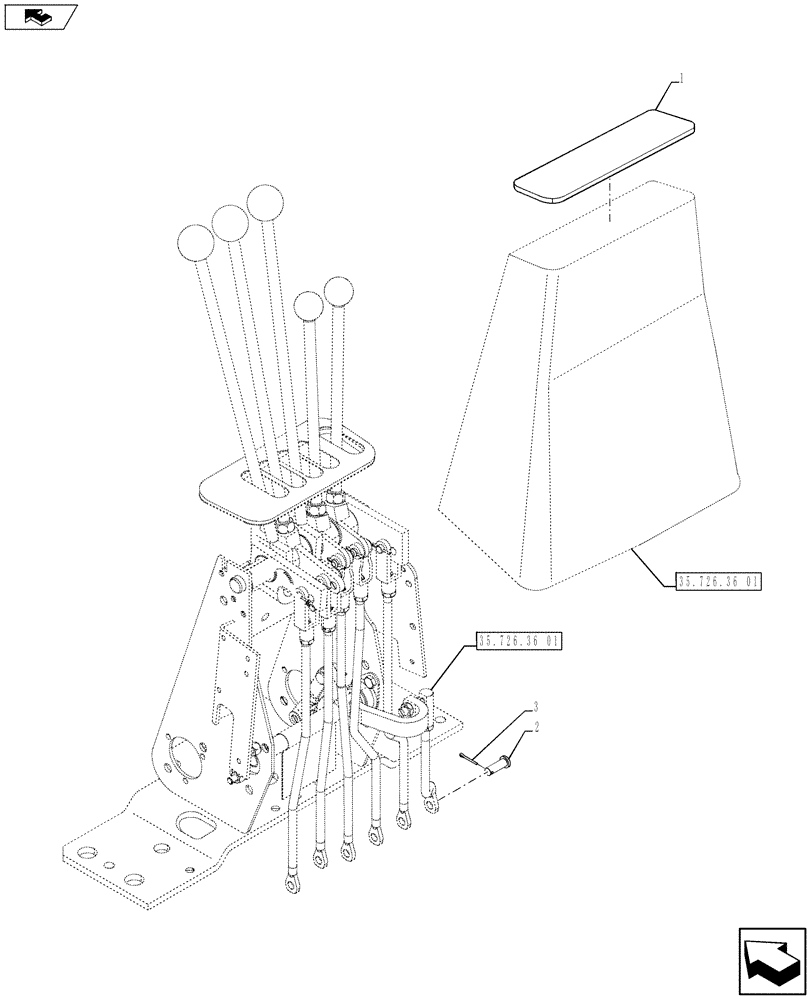

Схема запчастей Case 580SN - (35.726.36[02]) - CONTROL - BACKHOE, WITH FOOT SWING (WITHOUT EXTENDABLE DIPPER) (35) - HYDRAULIC SYSTEMS
3
35.726.36 01
home
1
2
35.726.36 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

D149824

DECAL

Upper; Standard Backhoe Control Pattern

1шт.

2

D149287

PIN,7.9mm OD x 26.72mm L

6шт.

3

432-612

COTTER PIN,3/32" x 3/4"

6шт.

Выбрано товаров: 3
