(35.726.29) - BACKHOE HED/STD DIPPER, FOOT SWING CONTROL, PEDAL, COVER

Запчасти Case 580SN (35.726.29) - BACKHOE HED/STD DIPPER, FOOT SWING CONTROL, PEDAL, COVER (35) - HYDRAULIC SYSTEMS

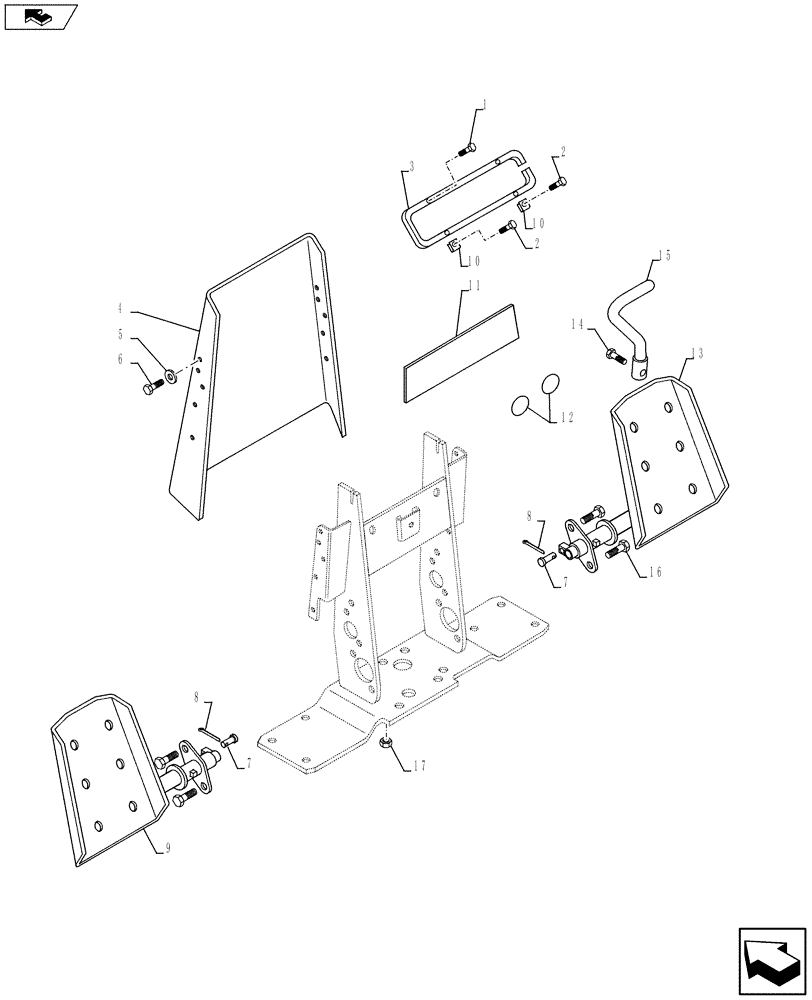

Схема запчастей Case 580SN - (35.726.29) - BACKHOE HED/STD DIPPER, FOOT SWING CONTROL, PEDAL, COVER (35) - HYDRAULIC SYSTEMS
3
home
4
5
10
17
8
1
7
2
13
15
7
16
11
9
14
10
8
2
12
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87310126

SCREW,Phillips Drive, Pan HD, #10 - 24 x 3/4", SST

2шт.

2

87310124

SCREW,Phillips Drive, Pan HD, #10 - 24 x 1/2", SST

2шт.

3

136822A1

RETAINER

1шт.

4

390759A1

COVER

2 Levers

1шт.

5

87310139

WASHER,7.14mm ID x 15.88mm OD x 1.65mm Thk

5шт.

6

87310156

SELF-TAP SCREW,M6.3 x 1.8 x 16mm, Stainless

5шт.

7

D149288

PIN,8.33mm OD x 30.66mm L

2шт.

8

432-612

COTTER PIN,3/32" x 3/4"

2шт.

9

136271A2

PEDAL

1шт.

10

131-861

SPRING NUT,Tinn, U, #10-24

4шт.

11

D149826

IMPORTANT DECAL

Caution; For All Models With Foot Swing Backhoe Controls and Standard Backhoe Models With Hand Swing, Serial Range: -C7317

1шт.

11

47401717

WARNING DECAL

Warning Caution Backhoe, Start Serial: D7317

1шт.

12

353-411

PLUG,Dome, 1.000" hole, Nylon

2шт.

13

136270A2

PEDAL

1шт.

14

87041331

BOLT,Hex, M6 x 16mm, Cl 8.8

1шт.

15

87444149

ROD

1шт.

16

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

17

832-10410

NUT,M10 x 1.5, Cl 8

4шт.
