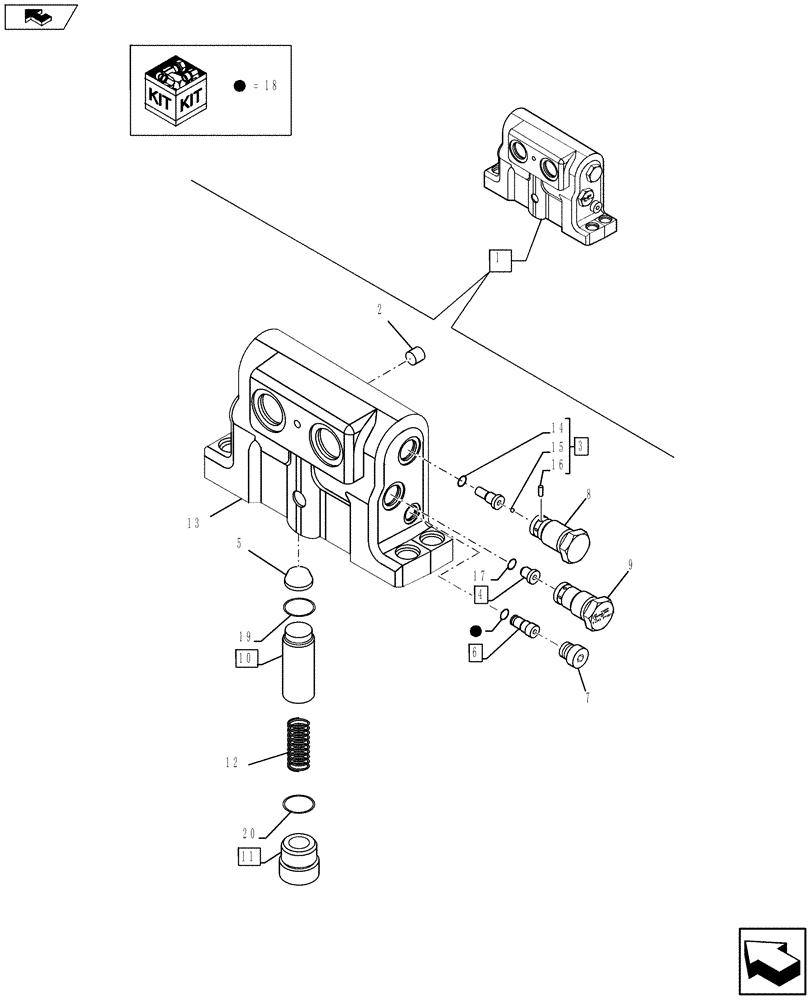

Запчасти Case 580SN (35.726.26[04]) - DAMPING VALVE, LEVER ASSY & KNOB - W/ PILOT CONTROLS (35) - HYDRAULIC SYSTEMS

1

87480653

DAMPING VALVE

Assy, Incl 2 - 20

1шт.

2

369372A1

PLUG,6.5mm OD x 5mm L

2шт.

3

400296A2

VALVE, CHECK

Assy, Incl 14 - 16

2шт.

4

400657A1

PLUG,1.85mm Hole

Assy, Incl 17

1шт.

5

1976955C1

FILTER SCREEN

1шт.

6

388712A2

VALVE

Assy, Incl 18

1шт.

7

218-5209

PLUG,Hex, 9/16"-18 ORB

1шт.

8

87753055

CHECK VALVE

2шт.

9

396422A2

VALVE, CHECK

2шт.

10

87449374

SPOOL

Assy, Incl 19

1шт.

11

409025A1

PLUG,Hex, 3/4" - 16 ORB

Assy, Incl 20

1шт.

12

388881A1

COIL SPRING,Compression, 12.20mm OD x 59.21mm L

2шт.

13

87416976

VALVE BODY

1шт.

14

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

15

211-1007

BALL,7/32" Dia

1шт.

16

38-3605

PIN,3/32" x 5/16", Coiled

1шт.

17

237-6002

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

1шт.

18

388713A1

SEAL KIT

1шт.

19

100-2150

SNAP RING,0.50", Int, #50

1шт.

20

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
