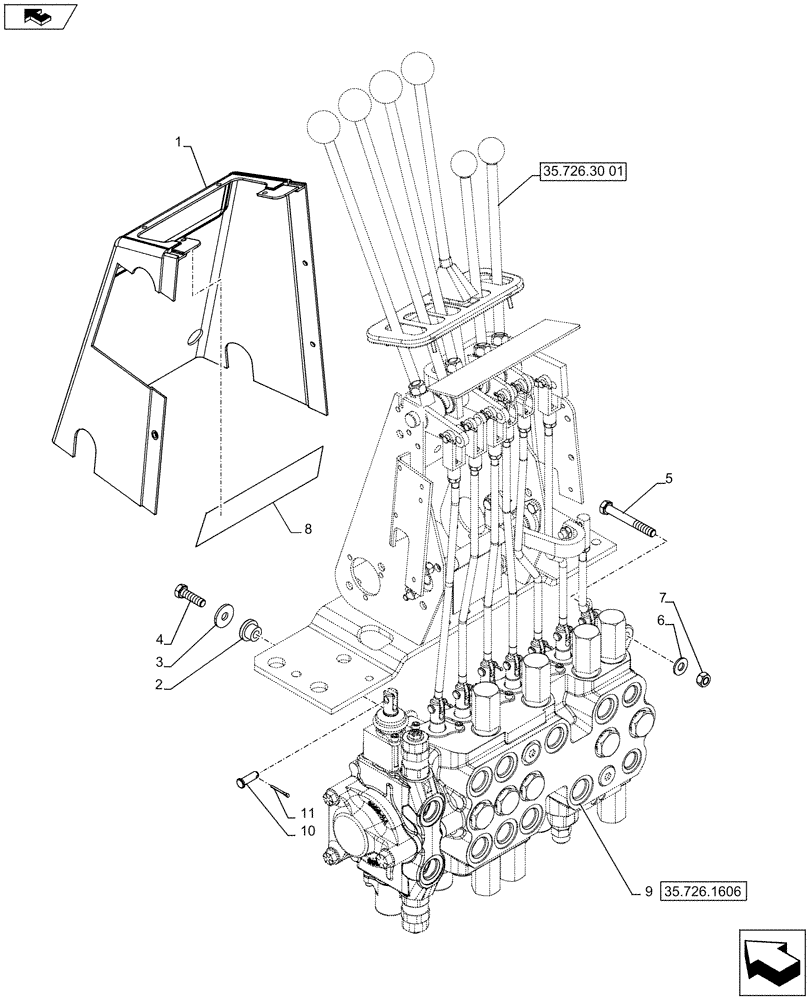

Запчасти Case 580SN (35.726.19[01]) - BACKHOE CONTROL VALVE, 7-SPOOL, MOUNTING PARTS, EXTENDABLE DIPPER, W/ FOOT SWING CONTROLS (35) - HYDRAULIC SYSTEMS

1

390760A1

COVER

1шт.

2

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

1шт.

3

87687101

WASHER,10.65mm ID x 31mm OD x 3.3mm Thk

2шт.

4

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

1шт.

5

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

2шт.

6

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

2шт.

7

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

8

D149825

DECAL

1шт.

9

84233915

VALVE

1шт.

10

432-612

COTTER PIN,3/32" x 3/4"

7шт.

11

D149287

PIN,7.9mm OD x 26.72mm L

7шт.
