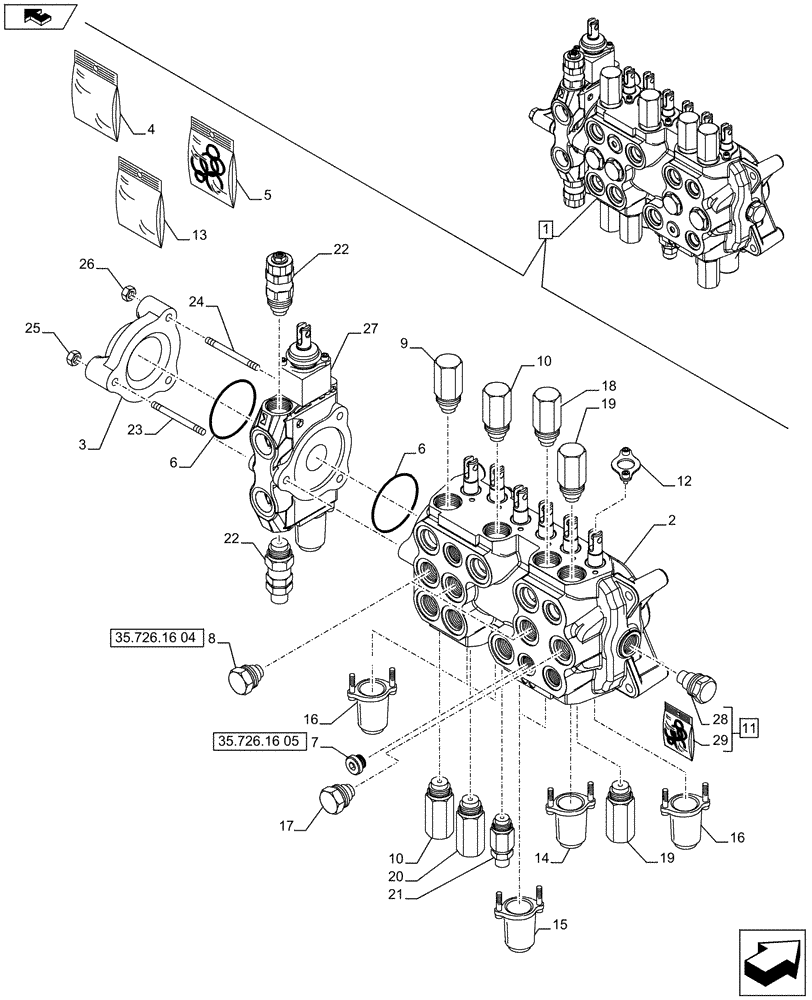

Запчасти Case 580SN (35.726.1608[01A]) - BACKHOE CONTROL VALVE, 7-SPOOL, COMPONENTS, W/ STANDARD DIPPER, W/ FOOT SWING CONTROLS - D7373 (35) - HYDRAULIC SYSTEMS

1

47578535

VALVE

ASSY, Incl 2 - 29

1шт.

Backhoe Control Valve, 7-Spool with STD Dipper and Foot Swing Controls

1шт.

2

NSS

NOT SOLD SEPARAT

Block, Incl in 1

1шт.

3

87433030

OUTLET

Section, Outlet

1шт.

4

84276556

SERVICE KIT

BI-DIR Aux Bolt on, ASSY, Incl 22 - 27

1шт.

5

47537934

SEAL KIT

Mech Bhoe Valve Seal

1шт.

6

87428495

O-RING,3.50" ID x 3.76" OD x .139" thk

2шт.

7

87428486

VALVE, CHECK

ASSY

1шт.

8

87426238

VALVE, CHECK

ASSY

3шт.

9

47520553

VALVE PRESSURE RELIE

Bucket A Port

1шт.

10

47520548

VALVE PRESSURE RELIE

283 Bar

2шт.

11

81868381

CHECK VALVE,1-1/16" - 12

Anti Void, ASSY, Incl 28, 29

1шт.

12

84315193

SEAL

6шт.

13

84296861

SERVICE KIT

Foot swing B Port End Group

1шт.

14

84296862

KIT

Mech Boom B Port End Group

1шт.

15

84296826

SERVICE KIT

Mech Stab End Group B Port

2шт.

16

84296859

KIT

Mech Bhoe Vlv B port End G

3шт.

17

47538073

CHECK VALVE

1шт.

18

47537935

VALVE PRESSURE RELIE,221 Bar

1шт.

19

47520547

VALVE PRESSURE RELIE,205 Bar

2шт.

20

47520549

VALVE PRESSURE RELIE

Dipper B Port

1шт.

21

47520550

VALVE PRESSURE RELIE

Boom B Port

1шт.

22

47520559

VALVE PRESSURE RELIE

Bi-Aux, 220 Bar

2шт.

23

47538075

TIE-ROD

1шт.

24

47538074

TIE-ROD

2шт.

25

47520611

NUT

1шт.

26

47520609

NUT

2шт.

27

NSS

NOT SOLD SEPARAT

Spool Section, Incl in 1

1шт.

28

NSS

NOT SOLD SEPARAT

Anti Void Valve, Incl in 11

1шт.

29

87455580

O-RING KIT

1шт.
