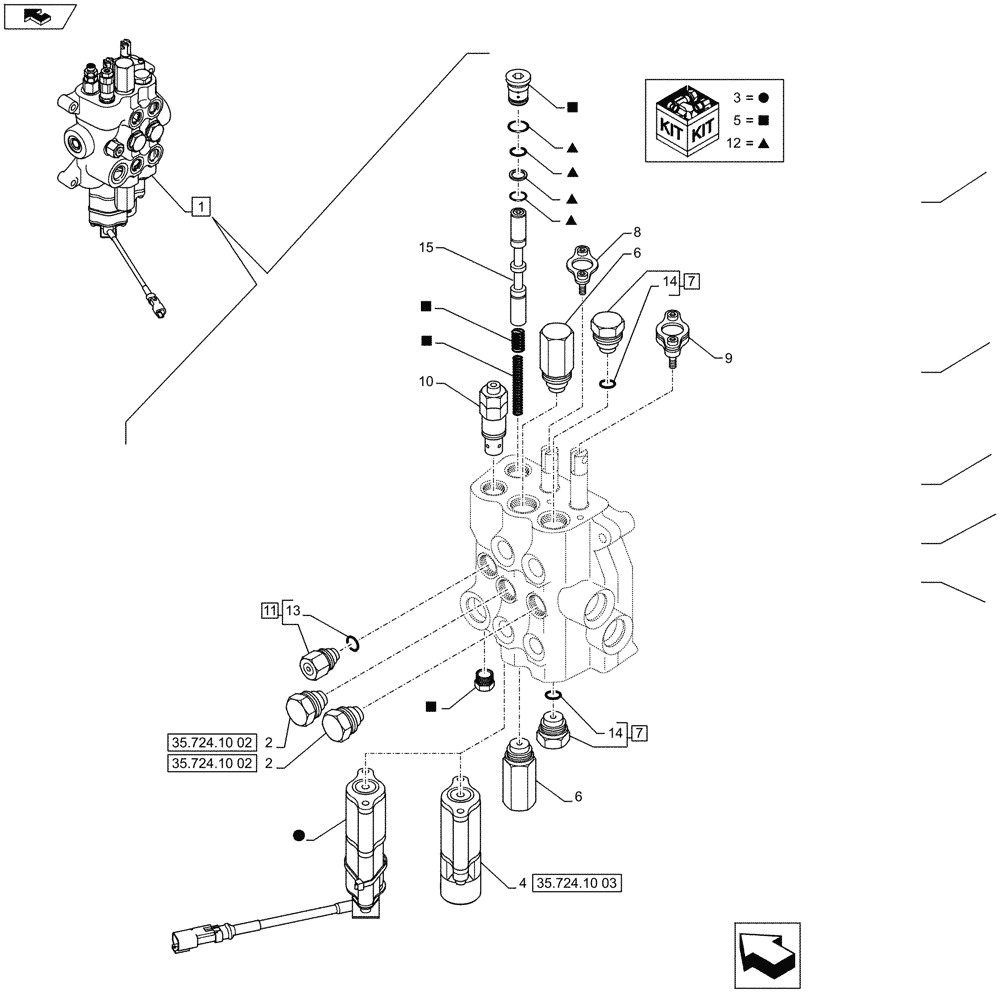

Запчасти Case 580SN (35.724.10[01]) - VAR - X20137X - LOADER CONTROL VALVE, 2 SECTIONS, W/O PILOT CONTROLS (35) - HYDRAULIC SYSTEMS

1

84217762

HYDRAULIC VALVE

Assy, Incl 2 - 15

1шт.

2

87426238

VALVE, CHECK

Assy

2шт.

3

84296814

KIT

1шт.

4

87426227

DETENT

Assy

1шт.

5

84296863

KIT

1шт.

6

84296801

VALVE PRESSURE RELIE,1-1/4" - 12

2шт.

7

81868381

CHECK VALVE,1-1/16" - 12

Assy, Incl 14

2шт.

8

84315193

SEAL

1шт.

9

84327674

KIT

1шт.

10

84296864

VALVE PRESSURE RELIE,7/8" - 14

1шт.

11

163410

PLUG,1-1/16" - 12 ORB

Assy, Incl 13

1шт.

12

84296788

SEAL KIT

1шт.

13

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

14

87455549

SEAL KIT

2шт.

15

NSS

NOT SOLD SEPARAT

Spool, Incl in 1

1шт.
