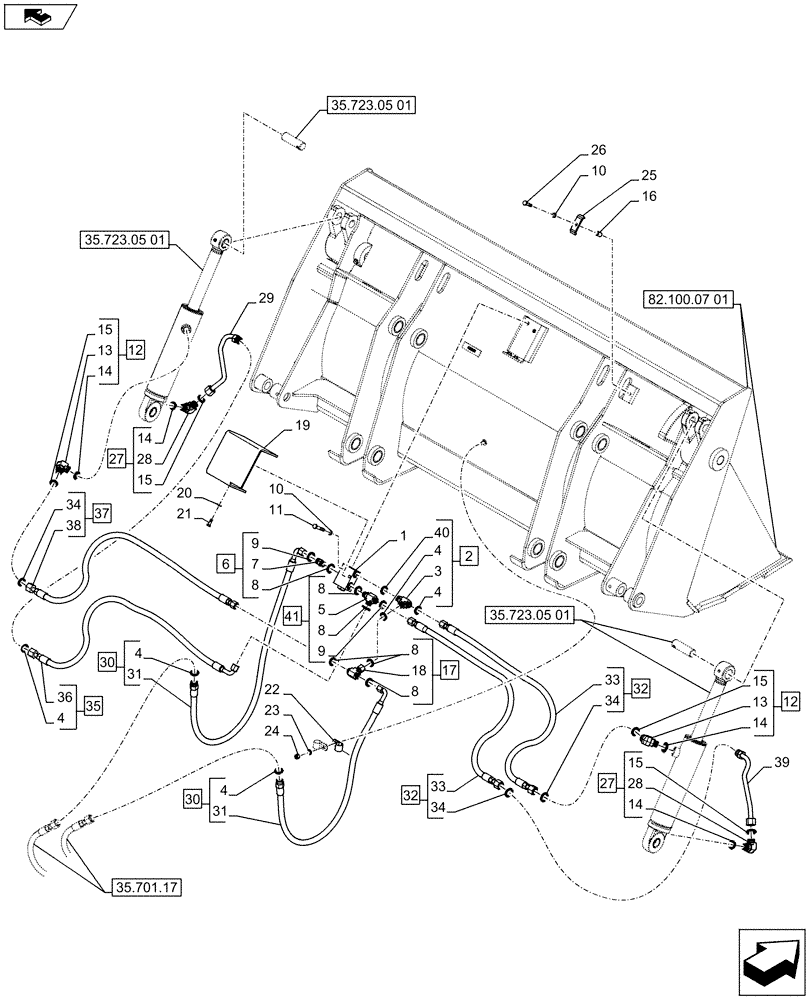

Запчасти Case 580SN (35.723.0601[01]) - VAR - 747863 - BUCKET, CYLINDER, LINES - C7384 (35) - HYDRAULIC SYSTEMS

1

325465A2

VALVE, CHECK

Pilot Operator Check

1шт.

2

84218880

RUN TEE,13/16" - 16 ORFS x 13/16" - 16 ORFS x 9/16" - 18 ORB

ASSY, Incl 3, 4 (Qty 2), 40

1шт.

3

NSS

NOT SOLD SEPARAT

Tee, Incl in 2

1шт.

4

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

5шт.

5

NSS

NOT SOLD SEPARAT

Tee, Incl in 41

1шт.

6

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

ASSY, Incl 7, 8 (Qty 1), 9 (Qty 1)

1шт.

7

NSS

NOT SOLD SEPARAT

Connector, Incl in 6

1шт.

8

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

6шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

10

892-11010

LOCK WASHER,M10

4шт.

11

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

12

201-316

ELBOW,45 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

ASSY, Incl 13, 14 (Qty 1), 15 (Qty 1)

2шт.

13

NSS

NOT SOLD SEPARAT

45° Elbow, Incl in 12

1шт.

14

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

16

R46493

SPACER,0.406" ID x 0.625" OD x 0.850" Thk

2шт.

17

201-411

TEE,13/16"-16 ORFS x 13/16"-16 Sw Br

ASSY, Incl 8 (Qty 3), 18

1шт.

18

NSS

NOT SOLD SEPARAT

Tee, Incl in 17

1шт.

19

388848A1

GUARD

1шт.

20

892-11008

LOCK WASHER,8mm ID

2шт.

21

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

22

515-25254

CLAMP,1", Insul, 1/2" Bolt

2шт.

23

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

24

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

25

D143846

CLAMP

2шт.

26

614-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.

27

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

ASSY, Incl 14 (Qty 1), 15 (Qty 1), 28

2шт.

28

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 27

1шт.

29

84219830

HYD TUBE

LH Cylinder

1шт.

30

84272032

HOSE ASSY.,12.5mm ID x 1290mm L

ASSY, Incl 4 (Qty 1), 31 (Qty 1)

2шт.

31

NSS

NOT SOLD SEPARAT

Hydraulic Hose, Incl in 30

2шт.

32

84219839

HOSE ASSY.,12.5mm ID x 1152mm L

ASSY, Incl 33 (Qty 1), 34 (Qty 1)

2шт.

33

NSS

NOT SOLD SEPARAT

Hydraulic Hose, Incl in 32

2шт.

34

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

35

84219844

HOSE ASSY.,12.5mm ID x 1250mm L

ASSY, Incl 4 (Qty 1), 36

1шт.

36

NSS

NOT SOLD SEPARAT

Hydraulic Hose, Incl in 35

1шт.

37

84219846

HOSE ASSY.,12.5mm ID x 1283mm L

ASSY, Incl 34 (Qty 1), 38

1шт.

38

NSS

NOT SOLD SEPARAT

Hydraulic Hose, Incl in 37

1шт.

39

84219829

HYD TUBE

RH Cylinder

1шт.

40

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

41

201-412

TEE,13/16" - 16 ORFS x 13/16" - 16 ORFS x 3/4" - 16 ORB

ASSY, Incl 5, 8 (Qty 2), 9 (Qty 1)

1шт.
