(35.723.0201) - FRONT LOADER HYDRAULIC SYSTEM - BUCKET CYLINDER LINES

Запчасти Case 580SN (35.723.0201) - FRONT LOADER HYDRAULIC SYSTEM - BUCKET CYLINDER LINES (35) - HYDRAULIC SYSTEMS

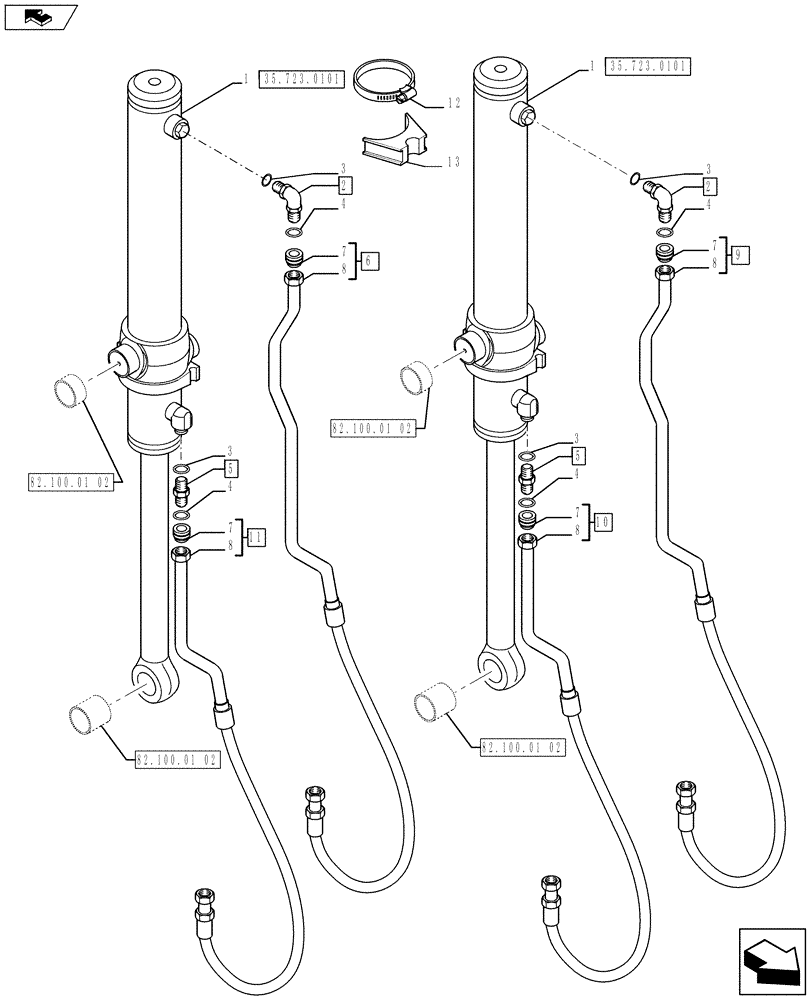

Схема запчастей Case 580SN - (35.723.0201) - FRONT LOADER HYDRAULIC SYSTEM - BUCKET CYLINDER LINES (35) - HYDRAULIC SYSTEMS
11
82.100.01 02
4
3
82.100.01 02
1
82.100.01 02
35.723.0101
3
35.723.0101
82.100.01 02
7
8
4
9
3
2
5
7
home
4
8
5
4
3
8
1
8
12
7
2
7
10
13
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84421601

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 516.5mm Stroke

Assy

2шт.

1

84421601R

REMAN-HYD CYLINDER

2шт.

1

84421601C

Return Number

2шт.

2

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

Assy, Incl 3 - 4

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

5

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

Assy, Incl 3 - 4

2шт.

6

84399689

TUBE

Assy, Incl 7 - 8

1шт.

7

203-911

SLEEVE,ORFS, 5/8" Tube, Braze

1шт.

8

703-903

TUBE NUT,1" - 14

1шт.

9

84399671

TUBE

Assy, Incl 7 - 8

1шт.

10

84307497

HYD TUBE

Assy, Incl 7 - 8

1шт.

11

84307492

HYD TUBE

Assy, Incl 7 - 8

1шт.

12

9706924

HOSE CLAMP,103.1mm - 127mm

2шт.

13

L79937

SADDLE

2шт.
