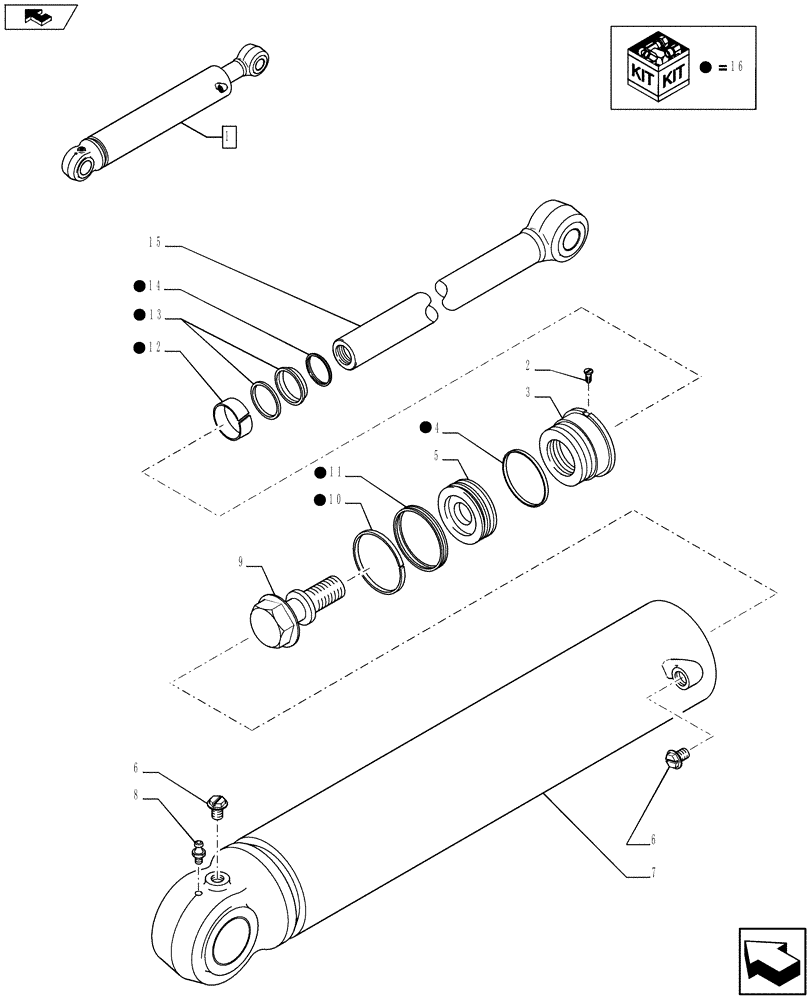

Запчасти Case 580SN (35.703.0202) - STABILIZER CYLINDER, RH, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

84421606

HYDRAULIC CYLINDER,Double Acting, 57.2mm Rod, 114.3mm Bore, 542.9mm Stroke

RH Assy, Incl 2 - 16

1шт.

Please Refer to Figure 35.703.0302 in order to choose the right Cylinder

1шт.

1

84421606R

REMAN-HYD CYLINDER

RH, Assy

1шт.

1

84421606C

CORE-HYD CYLINDER

Return Part Number

1шт.

2

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

3

84238794

GLAND

1шт.

4

NSS

NOT SOLD SEPARAT

1шт.

5

84228260

PISTON ROD/GLAND,113.64mm Bore, 57.25mm Rod, 56.45mm W

1шт.

6

353-779

PLUG,Sltd Hd, 3/4"-16, Yellow, Plastic, w/O-Ring

2шт.

7

84222151

HYD TUBE,114.3mm Bore Dia

1шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

9

86982442

SPECIAL BOLT,Hex, 12, 1 1/4 x 3.25"

1шт.

10

NSS

NOT SOLD SEPARAT

1шт.

11

NSS

NOT SOLD SEPARAT

1шт.

12

NSS

NOT SOLD SEPARAT

1шт.

13

NSS

NOT SOLD SEPARAT

1шт.

14

NSS

NOT SOLD SEPARAT

1шт.

15

84222154

ROD,57.2mm OD x 771.4mm L

1шт.

16

84259227

SEAL KIT,57.2mm Rod x 114.3mm Bore

Kit, Incl 4, 10 - 14

1шт.
