(35.701.1101) - HYDRAULICS - LOADER LIFT CYLINDER

Запчасти Case 580SN (35.701.1101) - HYDRAULICS - LOADER LIFT CYLINDER (35) - HYDRAULIC SYSTEMS

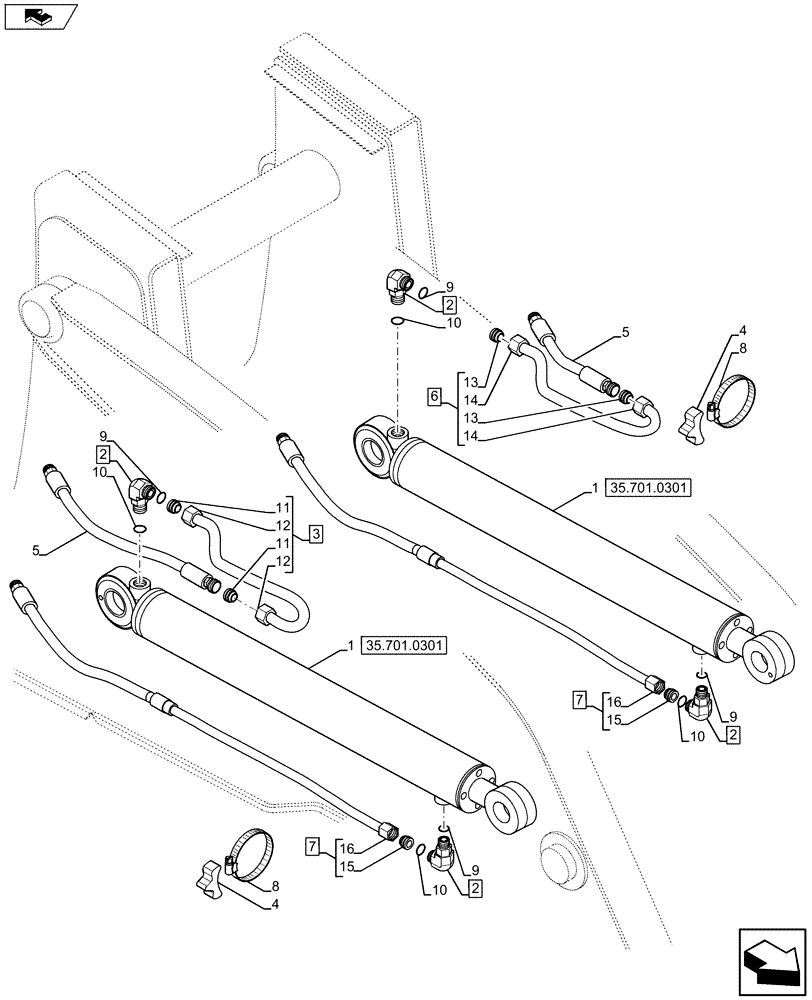

Схема запчастей Case 580SN - (35.701.1101) - HYDRAULICS - LOADER LIFT CYLINDER (35) - HYDRAULIC SYSTEMS
5
15
2
16
12
16
7
10
9
2
9
home
9
10
8
3
8
35.701.0301
14
10
10
2
13
14
13
1
7
35.701.0301
5
4
2
11
11
6
12
15
1
4
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84560014

HYDRAULIC CYLINDER,44.4mm Rod, 733mm Stroke

Assy

2шт.

1

84560014R

REMAN-HYD CYLINDER

580SN, BACKHOE LOADER, TIER 4A, FROM PIN NCC564000, Assy (3/12-)

2шт.

1

84560014C

CORE-HYD CYLINDER

Return Number

2шт.

2

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

Assy, Incl 9 - 10

4шт.

3

84295697

HYD TUBE

Assy, Incl 11 - 12

1шт.

4

84296626

SECURING STRAP

2шт.

5

84351615

HOSE ASSY.,12.5mm ID x 526mm L

2шт.

6

84295087

HYD TUBE

Assy, Incl 13 - 14

1шт.

7

84294590

HYD TUBE

Assy, Incl 15 - 16

2шт.

8

214-1472

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

2шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

10

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

11

203-911

SLEEVE,ORFS, 5/8" Tube, Braze

2шт.

12

703-903

TUBE NUT,1" - 14

2шт.

13

203-911

SLEEVE,ORFS, 5/8" Tube, Braze

2шт.

14

703-903

TUBE NUT,1" - 14

2шт.

15

203-911

SLEEVE,ORFS, 5/8" Tube, Braze

1шт.

16

703-903

TUBE NUT,1" - 14

1шт.
