(35.701.0301) - FRONT LOADER HYDRAULIC SYSTEM - LIFT CYLINDER

Запчасти Case 580SN (35.701.0301) - FRONT LOADER HYDRAULIC SYSTEM - LIFT CYLINDER (35) - HYDRAULIC SYSTEMS

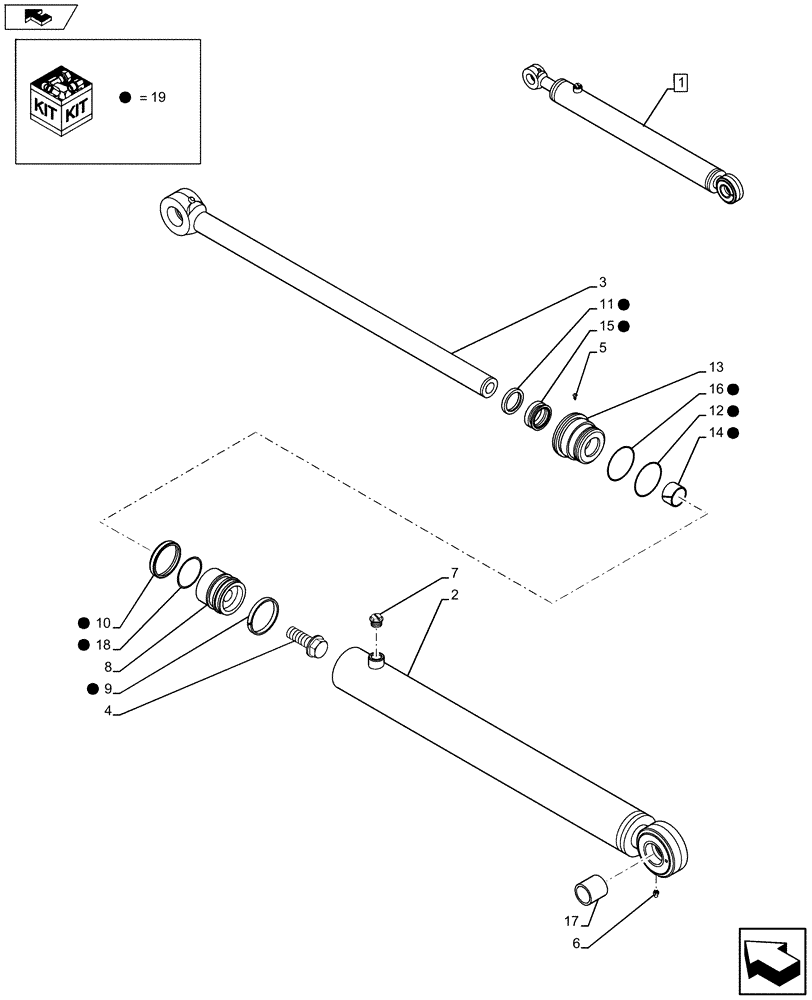

Схема запчастей Case 580SN - (35.701.0301) - FRONT LOADER HYDRAULIC SYSTEM - LIFT CYLINDER (35) - HYDRAULIC SYSTEMS
19
14
19
19
15
10
9
12
5
6
13
19
17
18
8
19
19
7
1
home
19
19
11
19
16
3
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84421598

LIFT CYLINDER

Assy, Incl 2 - 19

2шт.

1

84560014R

REMAN-HYD CYLINDER

580SN, BACKHOE LOADER, TIER 4A, FROM PIN NCC564000, Assy (3/12-), Reman for New PN 84421598

2шт.

1

84560014C

CORE-HYD CYLINDER

Return Number

2шт.

2

84243715

TUBE,82.6mm Bore Dia

1шт.

3

84237793

ROD,44.4mm OD x 932.6mm L

1шт.

4

86982438

SPECIAL BOLT,Hex, 14, 1 x 3"

1шт.

5

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

6

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

7

353-780

PLUG,Sltd Hd, 7/8"-14, w/O-Ring

2шт.

8

84237866

PISTON ROD/GLAND

1шт.

9

NSS

NOT SOLD SEPARAT

1шт.

10

NSS

NOT SOLD SEPARAT

1шт.

11

NSS

NOT SOLD SEPARAT

1шт.

12

NSS

NOT SOLD SEPARAT

1шт.

13

84208516

GLAND

1шт.

14

NSS

NOT SOLD SEPARAT

1шт.

15

NSS

NOT SOLD SEPARAT

1шт.

16

NSS

NOT SOLD SEPARAT

1шт.

17

1980335C1

BUSHING,50.19mm ID x 60mm OD x 19mm L

2шт.

18

NSS

NOT SOLD SEPARAT

1шт.

19

84257323

SEAL KIT,44.4mm Rod x 82.6mm Bore

Incl 9 -12, 14 - 16, 18

1шт.
