(35.701.01[02]) - VAR - 747864 - HYDRAULICS - LOADER 4 IN 1 - VALVE PROPORTIONAL CONTROL 4 X 1 - 6 X 1

Запчасти Case 580SN (35.701.01[02]) - VAR - 747864 - HYDRAULICS - LOADER 4 IN 1 - VALVE PROPORTIONAL CONTROL 4 X 1 - 6 X 1 (35) - HYDRAULIC SYSTEMS

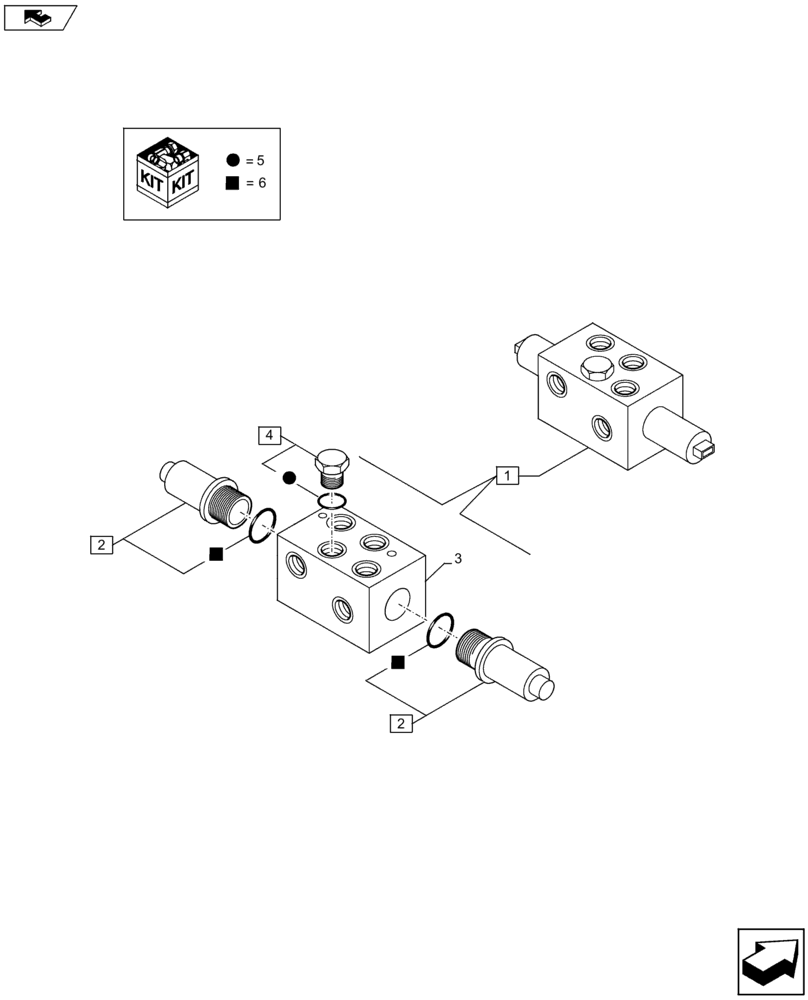

Схема запчастей Case 580SN - (35.701.01[02]) - VAR - 747864 - HYDRAULICS - LOADER 4 IN 1 - VALVE PROPORTIONAL CONTROL 4 X 1 - 6 X 1 (35) - HYDRAULIC SYSTEMS
5
3
2
2
6
4
6
5
6
1
5
6
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87566480

VALVE

Assy, Incl 2 - 6

1шт.

2

85827993

SOLENOID VALVE

Assy, Incl 6

2шт.

3

87311363

ORIFICE,1.8mm ID

1шт.

4

87739122

VALVE

Assy, Incl 5

1шт.

5

85828001

SEAL KIT

1шт.

6

85828000

SEAL KIT

1шт.

Выбрано товаров: 6
