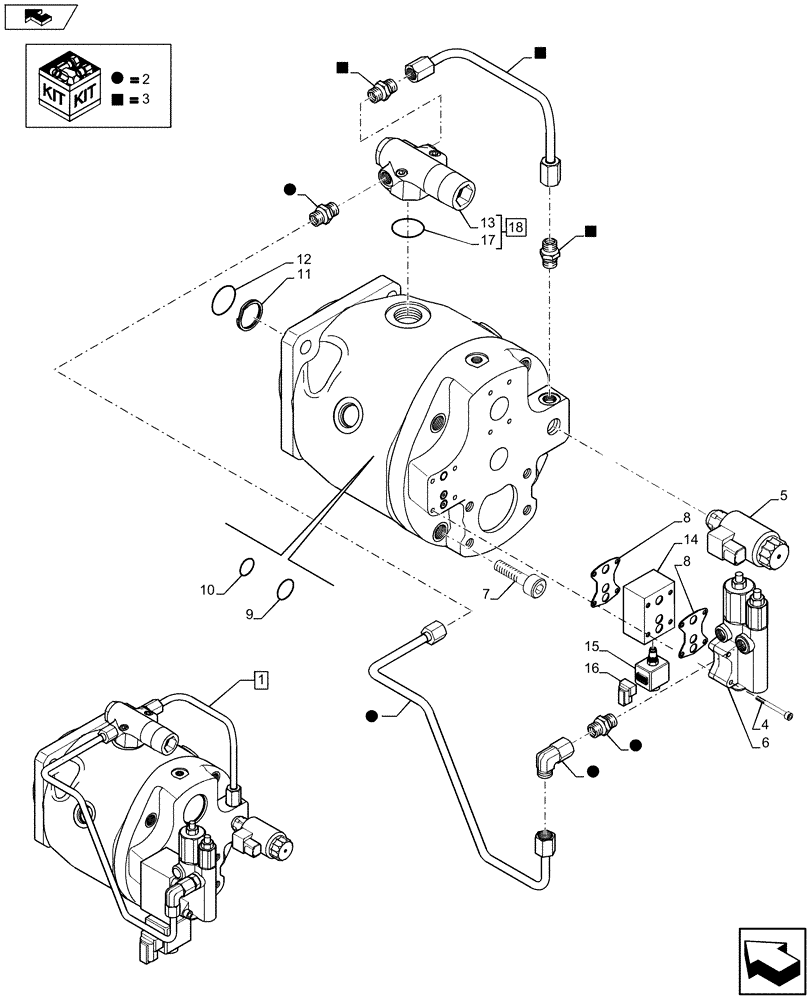

Запчасти Case 580SN (35.106.0201[02]) - HYDRAULIC PUMP, COMPONENTS (W/O POWER LIFT, W/ DUAL BATTERIES) (35) - HYDRAULIC SYSTEMS

1

84545278

HYDRAULIC PUMP,71 CC

Assy, Incl 2 - 18

1шт.

71cc, High Pressure Cutoff (HPCO)

1шт.

2

47369295

REPAIR KIT

1шт.

3

84499592

SERVICE KIT

1шт.

4

10589621

SCREW,Hex Skt, M6 x 80mm, Cl 8.8

4шт.

5

84312179

CONTROL VALVE

1шт.

6

84312294

CONTROL VALVE

1шт.

7

84312223

HEX SOC SCREW

4шт.

8

84312299

GASKET

2шт.

9

84312210

O-RING

1шт.

10

84312220

O-RING

4шт.

11

84312221

RING

1шт.

12

84312204

SEALING RING

2шт.

13

NSS

NOT SOLD SEPARAT

Control Valve, Incl in 18

1шт.

14

84545281

VALVE

Cold Start

1шт.

15

84545282

CARTRIDGE

Cold Start Valve

1шт.

16

84594557

COIL

Deutsch Connector, Diode

1шт.

17

NSS

NOT SOLD SEPARAT

O-ring Green, Incl in 18

1шт.

18

84311937

CONTROL VALVE

Assy, Incl 13, 17

1шт.
