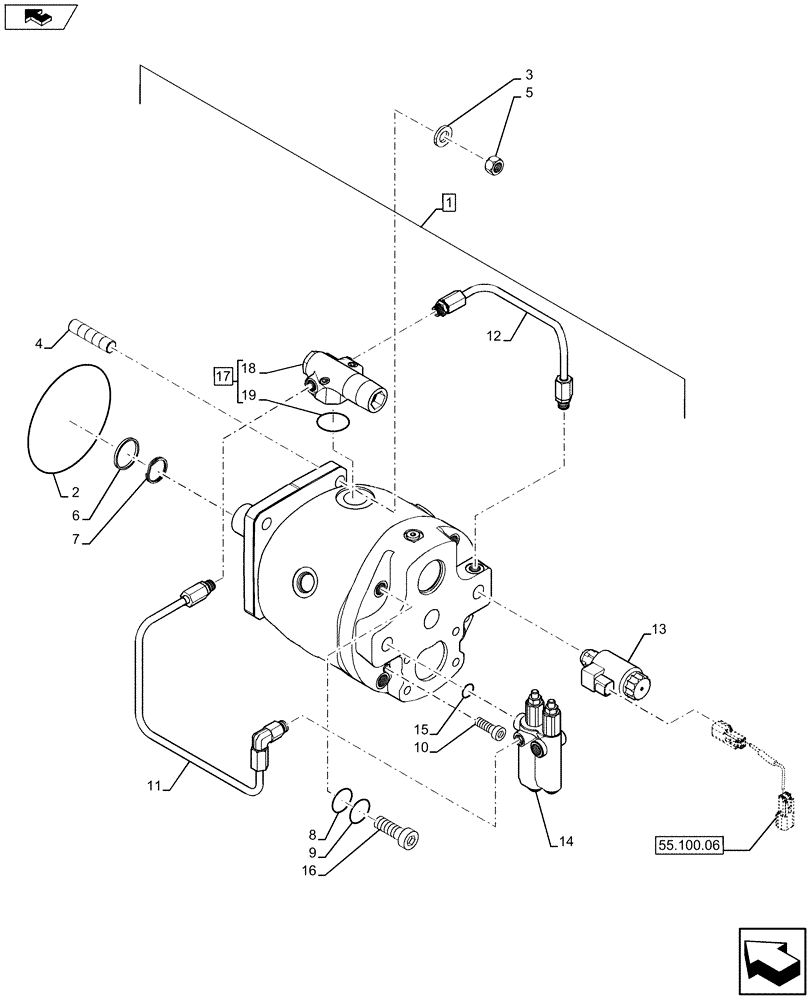

Запчасти Case 580SN (35.106.02) - HYDRAULIC PUMP (W/O POWER LIFT, W/O DUAL BATTERIES) (35) - HYDRAULIC SYSTEMS

1

84218959

HYDRAULIC PUMP,71 CC

Assy, Incl 6 - 19

1шт.

71cc, High Pressure Cutoff (HPCO)

1шт.

1

84218959R

REMAN-HYD PUMP

580SN TIER 4A - FROM PIN NCC564000 (3/12-)

1шт.

1

84218959C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

175156

O-RING,0.103" Thk x 4.987" ID, -159, Cl 5, 75 Duro

1шт.

3

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

4шт.

4

84419227

STUD

4шт.

5

825-11412

NUT,M12 x 1.25, Cl 8

4шт.

6

84312204

SEALING RING

2шт.

7

84312221

RING

1шт.

8

84312210

O-RING

1шт.

9

84312220

O-RING

4шт.

10

84312301

HEX SOC SCREW

4шт.

11

84499590

SERVICE KIT

1шт.

12

84499592

SERVICE KIT

1шт.

13

84312179

CONTROL VALVE

1шт.

14

84312294

CONTROL VALVE

1шт.

15

84312299

GASKET

1шт.

16

84312223

HEX SOC SCREW

4шт.

17

84311937

CONTROL VALVE

Assy, Incl 18 - 19

1шт.

18

NSS

NOT SOLD SEPARAT

Control Valve, Incl in 17

1шт.

19

NSS

NOT SOLD SEPARAT

O-ring Green, Incl in 17

1шт.
