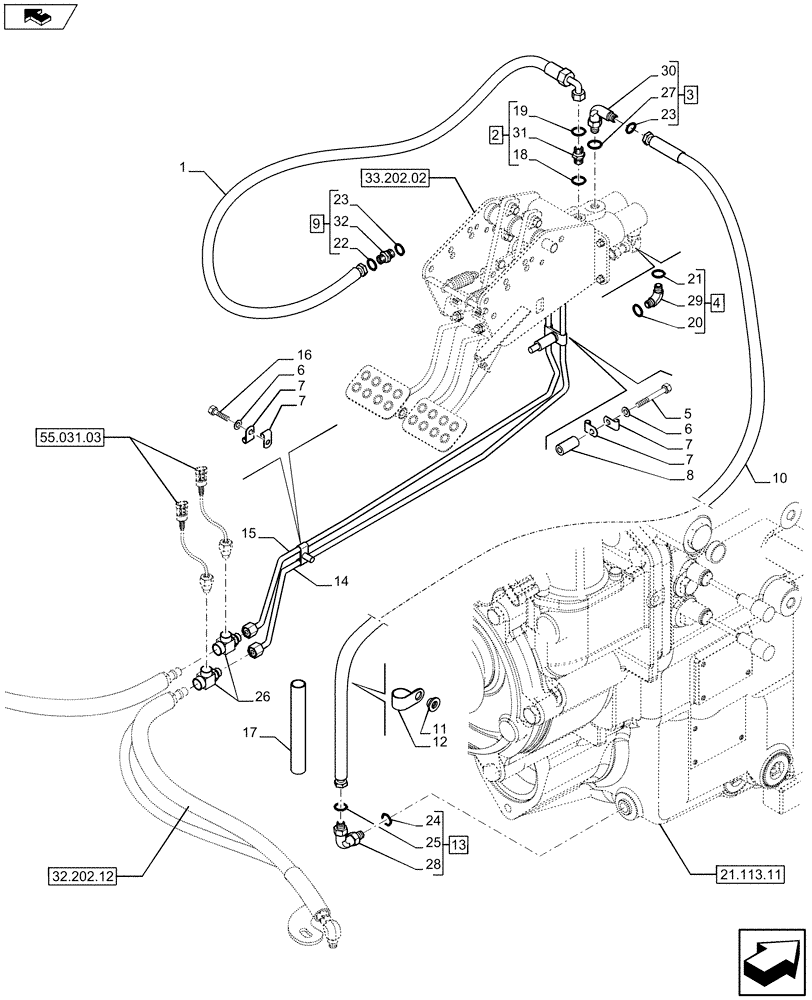

Запчасти Case 580SN (33.202.04) - BRAKE LINE, PEDAL (33) - BRAKES & CONTROLS

1

87603513

BRAKE LINE,9.5mm ID x 1525mm L

1шт.

2

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Assy, Incl 18 - 19, 31

1шт.

3

700-345

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Assy, Incl 23, 27, 30

1шт.

4

700-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Assy, Incl 20 - 21, 29

2шт.

5

814-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 8.8

1шт.

6

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

10шт.

7

515-2379

CLAMP,5/16", Insul, 3/8" Bolt

4шт.

8

87449579

SPACER,9.5mm ID x 19.05mm OD x 40mm L

1шт.

9

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Assy, Incl 22 - 23, 32

1шт.

10

87603514

BRAKE LINE,9.5mm ID x 1425mm L

1шт.

11

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

1шт.

12

515-25286

CLAMP,1 1/8", Insul, 3/8" Bolt

1шт.

13

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

Assy, Incl 24 - 25, 28

1шт.

14

84398009

HYD TUBE

1шт.

15

84398005

HYD TUBE

1шт.

16

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

17

87491619

GUARD,19.1mm ID x 1400mm L

1шт.

18

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

19

70924048

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

20

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

21

70924048

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

22

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

23

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

24

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

25

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

26

87632882

TEE,11/16"-16 ORFS x 1/8"-27 NTPF

2шт.

27

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

28

NSS

NOT SOLD SEPARAT

Elbow, Incl in 13

1шт.

29

NSS

NOT SOLD SEPARAT

Elbow, Incl in 4

1шт.

30

NSS

NOT SOLD SEPARAT

Elbow, Incl in 3

1шт.

31

NSS

NOT SOLD SEPARAT

Connector, Incl in 2

1шт.

32

NSS

NOT SOLD SEPARAT

Connector, Incl in 9

1шт.
