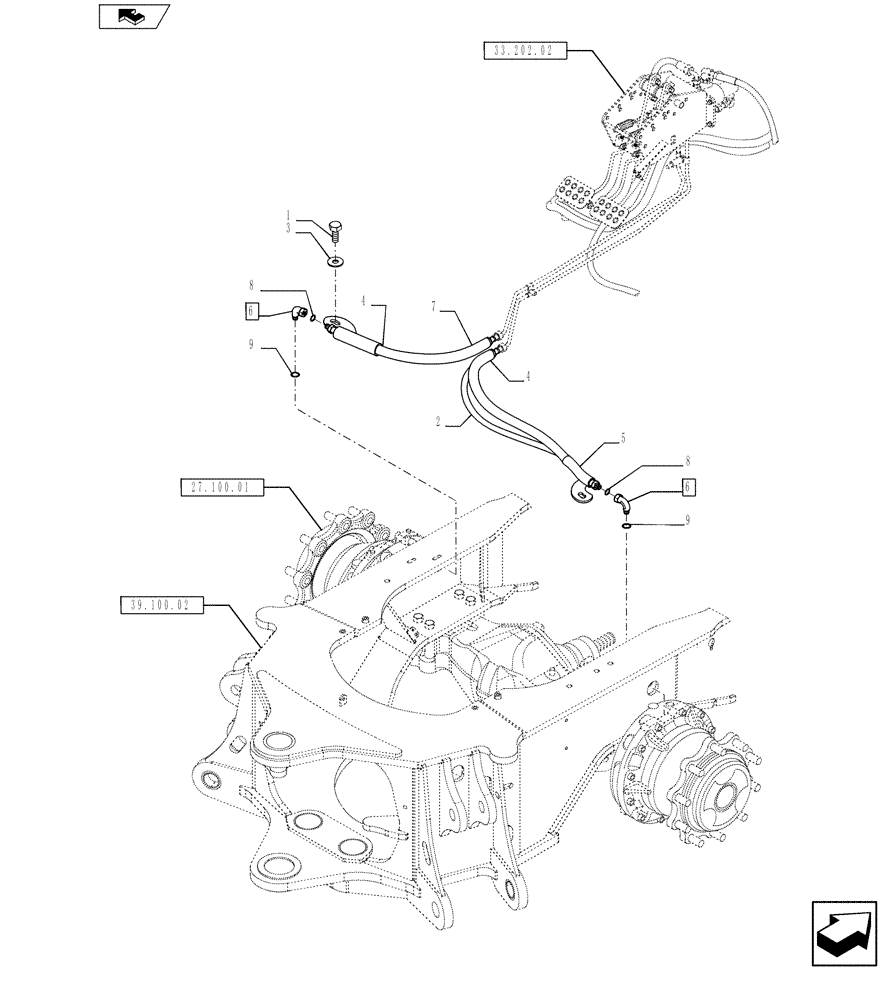

Запчасти Case 580SN (33.202.01) - BRAKE LINE (33) - BRAKES & CONTROLS

1

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

2шт.

2

84258167

HOSE ASSY.,10mm ID x 915mm L

1шт.

3

87687101

WASHER,10.65mm ID x 31mm OD x 3.3mm Thk

2шт.

4

191704A1

HOSE PROTECTION,19mm ID x 25mm OD x 460mm L

2шт.

5

87699881

GUARD

2шт.

6

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

Assy, Incl 8 - 9

2шт.

7

84258169

HOSE ASSY.,10mm ID x 715mm L

1шт.

8

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

9

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.
