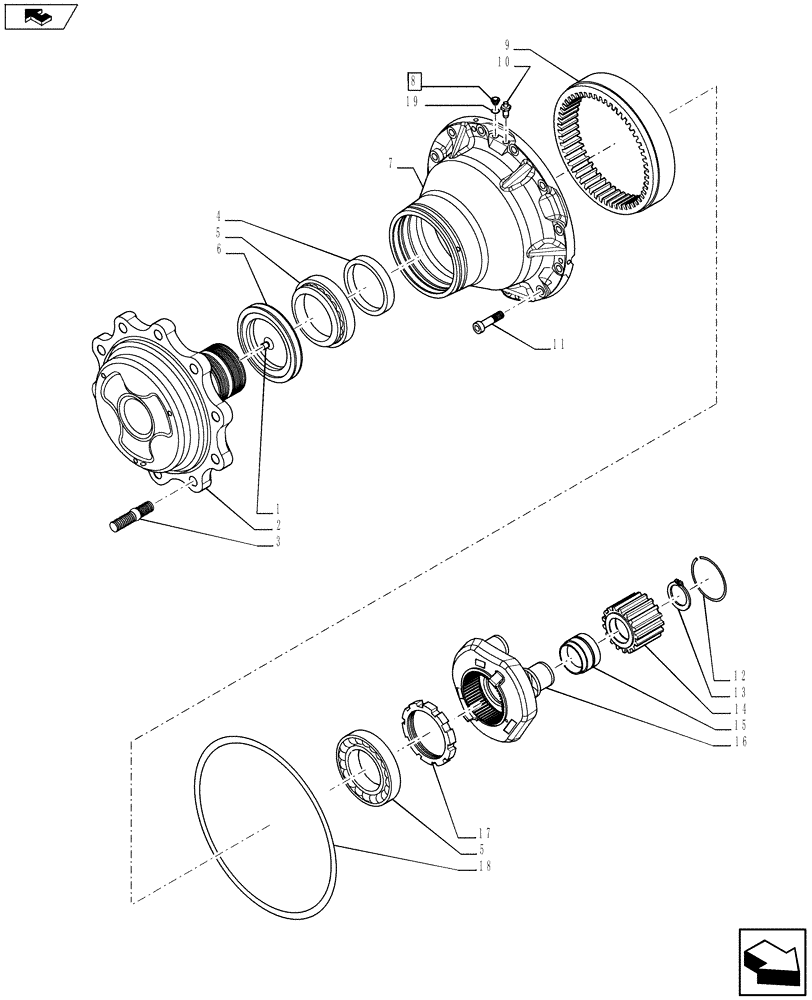

Запчасти Case 580SN (27.120.01) - WHEEL HUB & REDUCTION GEAR (27) - REAR AXLE SYSTEM

1

K395093

HEADED PIN,12mm OD x 15mm L

2шт.

2

87708445

FLANGE

2шт.

3

D142986

STUD,88mm L

20шт.

4

87708447

SPACER

2шт.

5

K395101

TAPERED BEARING,109.5mm ID x 126mm x 21.4mm L

4шт.

6

452140A1

SEALING RING,150mm ID x 180mm OD x 14.5mm W

2шт.

7

87708466

GEAR SET

2шт.

8

9625178

PLUG,9/16" - 18 ORB

Assy, Incl 19

2шт.

9

87708467

RING GEAR

2шт.

10

E135810

VENTING SCREW

2шт.

11

403955A1

BOLT

24шт.

12

87708453

SNAP RING

2шт.

13

800-1150

SNAP RING,M50, Ext

6шт.

14

87708443

GEAR

6шт.

15

87708444

ROLLER BEARING

6шт.

16

87708452

PLANET CARRIER

2шт.

17

87708454

RING NUT

2шт.

18

87711038

RING

2шт.

19

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
