(27.100.02) - BRAKE - DIFFERENTIAL

Запчасти Case 580SN (27.100.02) - BRAKE - DIFFERENTIAL (27) - REAR AXLE SYSTEM

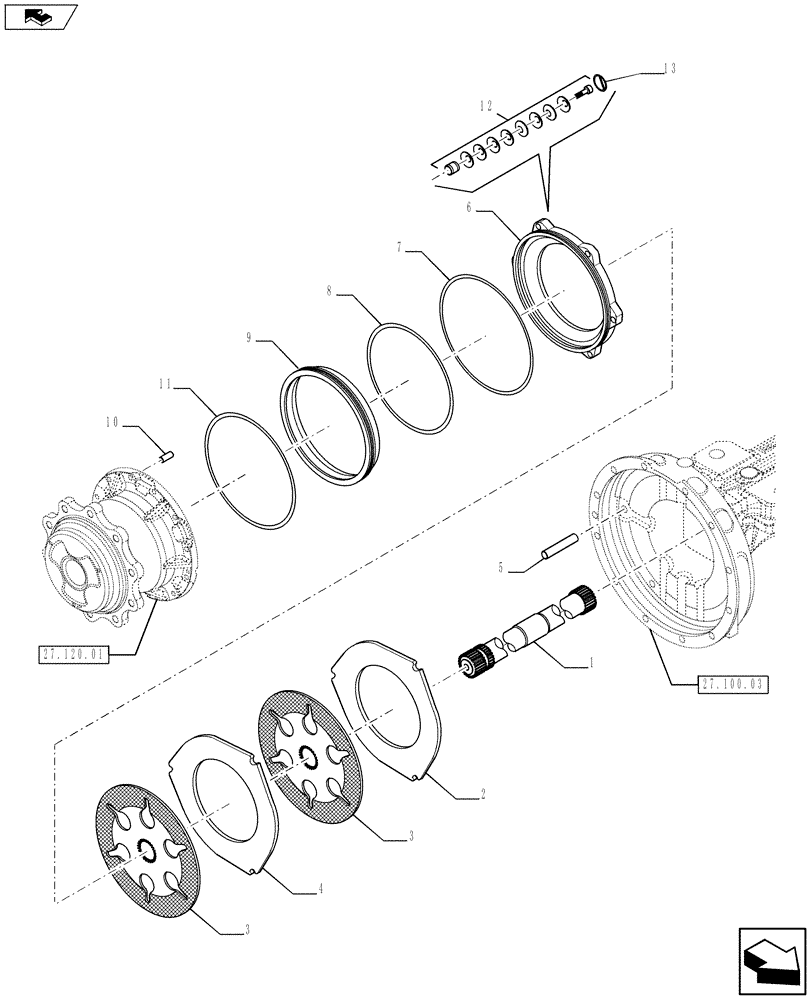

Схема запчастей Case 580SN - (27.100.02) - BRAKE - DIFFERENTIAL (27) - REAR AXLE SYSTEM
13
27.120.01
home
1
27.100.03
6
9
5
12
10
8
4
11
3
2
7
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87708431

SHAFT,734mm / 28.897"

RH (Determine from Seat Facing Radiator)

1шт.

1

87708432

SHAFT,629mm / 24.763"

LH (Determine from Seat Facing Radiator)

1шт.

2

87708433

BRAKE PLATE,5mm Thk

2шт.

3

87708434

BRAKE PLATE

4шт.

4

87708435

BRAKE PLATE,8mm Thk

2шт.

5

139294A1

GUIDE

6шт.

6

87708436

BRAKE CYLINDER

2шт.

7

87708438

O-RING

2шт.

8

371144A1

O-RING

2шт.

9

87708440

PISTON

2шт.

10

D142890

DOWEL

2шт.

11

371145A1

O-RING

2шт.

12

87708441

BRAKE ADJUSTER,0.6mm

6шт.

13

87708442

CIRCLIP

6шт.
