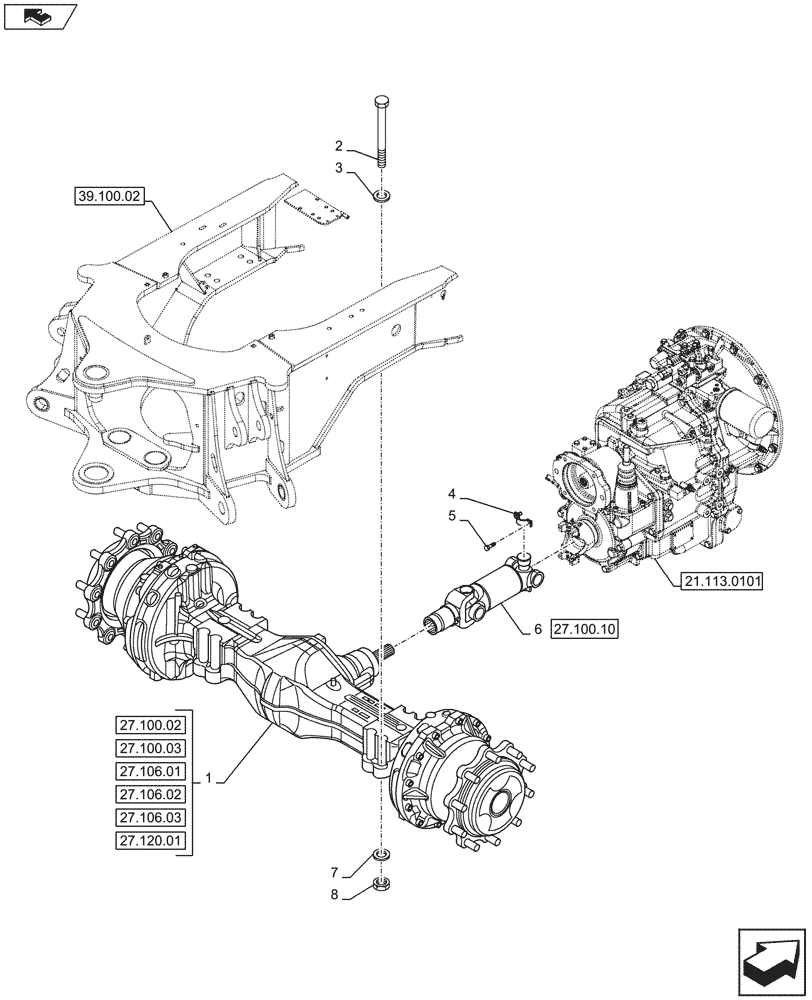

Запчасти Case 580SN (27.100.01) - REAR AXLE ASSY, DRIVE SHAFT (27) - REAR AXLE SYSTEM

1

87395372

REAR AXLE

Assy, See 27.100.02-27.100.03-27.106.01-27.106.02-27.106.03-27.120.01

1шт.

87395372R

REMAN-REAR AXLE

580N - FROM PIN NCC560000, & 580SN - FROM PIN NCC564000 all BACKHOE LOADER - TIER 4A (3/12-)

1шт.

87395372C

CORE-REAR AXLE

Return Number

1шт.

2

827-20200

BOLT,Hex, M20 x 2.5 x 200mm, Cl 10.9

8шт.

3

87655047

SPECIAL WASHER,21.25mm ID x 38.10mm OD x 4.20mm Thk

8шт.

4

D137626

CLAMP,30.175mm D Clamping Pipe

Driveshaft Spider Bearing

2шт.

5

9637611

SCREW,Hex Flng, 5/16" - 24 x 3/4"

4шт.

6

87613924

DRIVE SHAFT

Assy, See 27.124.01

1шт.

7

87618533

WASHER,21mm ID x 46mm OD x 6.4mm Thk

8шт.

8

829-1420

NUT,M20, Cl 10

8шт.
