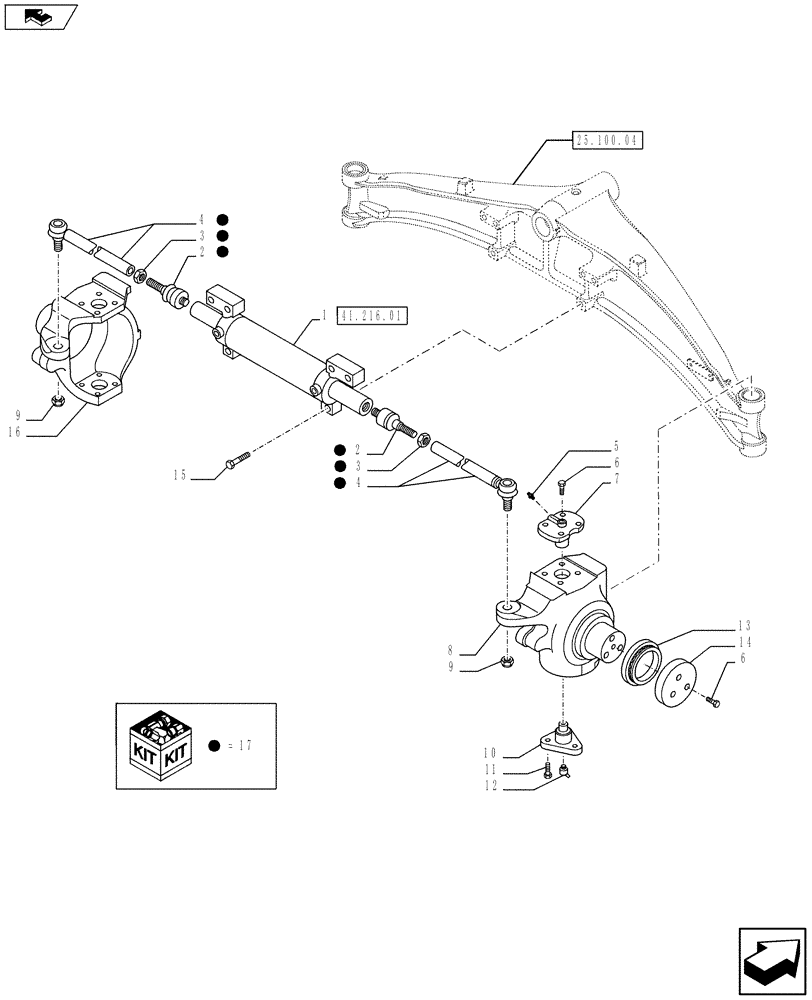

Запчасти Case 580SN (25.108.03) - STEERING KNUCKLE - CYLINDER - 2WD (25) - FRONT AXLE SYSTEM

1

401055A1

STEERING CYLINDER

(Two Wheel Drive) Assy

1шт.

2

112509A1

BALL JOINT

1шт.

3

934727R1

THIN NUT,Thin, M18 x 1.5, Cl 04

1шт.

4

401054A1

TIE-ROD,34mm OD x 260mm L

1шт.

5

712998R91

LUBE NIPPLE,M6 x 1, 16mm lg

2шт.

6

100533A1

BOLT,Self-Lock, M12 x 30mm

14шт.

7

122265A1

PIN,35mm / 45mm OD x 45.5mm L

2шт.

8

429232A1

STEERING KNUCKLE,LH

1шт.

9

905839R1

LOCK NUT,M18 x 1.5, Thin

2шт.

10

122259A1

PIVOT,120mm OD, 15mm ID, 5mm L

2шт.

11

D150214

BOLT,Lock, Hex, M14 x 2 x 35mm, Cl 10.9

6шт.

12

N13505

LUBE NIPPLE,45 Degree, M6 x 1

2шт.

13

401059A1

THRUST BEARING

2шт.

14

401060A1

THRUST WASHER

2шт.

15

863-16070

HEX SOC SCREW,M16 x 70mm, Cl 12.9

6шт.

16

429231A1

STEERING KNUCKLE,RH

1шт.

17

401052A1

STEERING ASSY

1шт.
