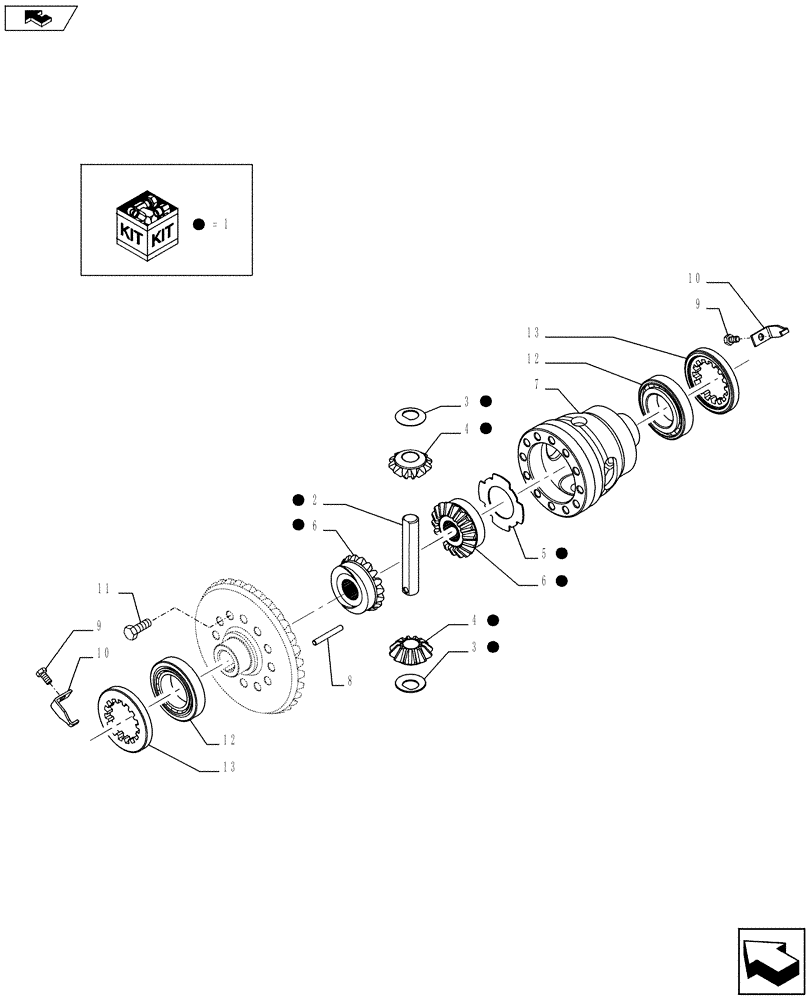

Запчасти Case 580SN (25.102.03) - DIFFERENTIAL ASSY - 4WD (25) - FRONT AXLE SYSTEM

1

84278737

DIFFERENTIAL

Assy, Incl 2 - 6

1шт.

2

84268545

PIN,21.9mm OD x 122.9mm L

1шт.

3

87727553

THRUST WASHER,20.27mm ID x 41.75mm OD x 1.5mm Thk

2шт.

4

87727552

BEVEL PINION,12T

2шт.

5

84225954

DISC,69.7mm OD x 1.5mm Thk

1шт.

6

84252967

BEVEL GEAR,18T

2шт.

7

84253805

AXLE HOUSING

1шт.

8

84268547

PIN,6.99mm OD x 61.5mm L

1шт.

9

84273742

BOLT,Hex, Lock, M8 x 1.25 x 16mm, Cl. 10.9

2шт.

10

87748532

RETAINER

2шт.

11

84273744

LOCK BOLT,Hex, Lock, M12 x 1.75 x 30mm, Cl. 10.9

12шт.

12

561201

TAPERED BEARING,50mm ID x 90mm OD x 21.75mm W

2шт.

13

4966240

BEARING LOCK NUT,M95 x 2, 15T

2шт.
