(10.400.AK) - VAR - 423000, 423001, 442082, 747853, 747854, 747855 - RADIATOR, EXPANSION TANK, HOSE

Запчасти Case 580SN (10.400.AK) - VAR - 423000, 423001, 442082, 747853, 747854, 747855 - RADIATOR, EXPANSION TANK, HOSE (10) - ENGINE

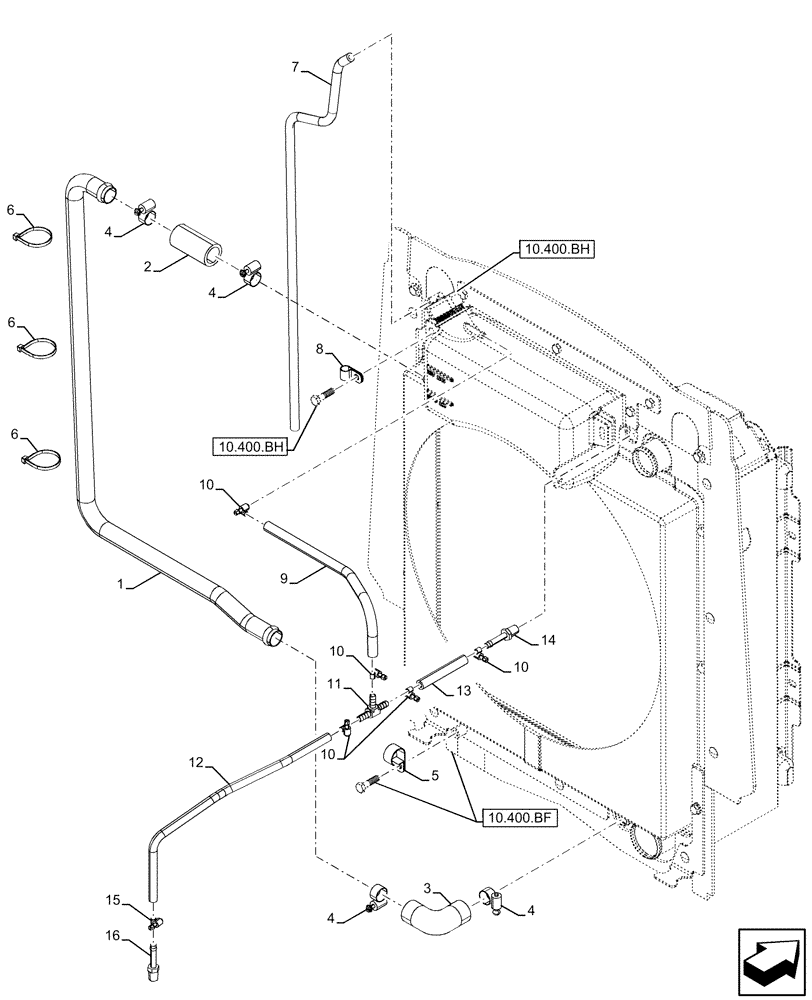

Схема запчастей Case 580SN - (10.400.AK) - VAR - 423000, 423001, 442082, 747853, 747854, 747855 - RADIATOR, EXPANSION TANK, HOSE (10) - ENGINE
10.400.bh
4
10
10
12
3
6
16
2
5
10
9
1
4
8
4
15
14
6
13
4
7
11
10
6
10.400.bf
10.400.bh
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87557237

TUBE,1" OD

Radiator Fill

1шт.

2

87367622

HOSE,25.40 mm ID x 60.00 mm, SAE 20R3 CLASS D-1 Or D-2

Tube to Recovery Bottle

1шт.

3

87454376

HOSE,25mm ID, 29.95mm OD, 90 Degree

Elbow

1шт.

4

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

4шт.

5

515-22254

CLAMP,1", Insul, 5/16" Bolt

1шт.

6

L11541

CABLE TIE,203.2mm L, Nylon

3шт.

7

87616934

HOSE,6.35mm ID x 750mm L, SAE 30R6

Radiator Bottle Overflow

1шт.

8

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

1шт.

9

87715652

HOSE,7.90 mm ID, SAE J30, SAE 30R6 Or SAE 20R4 Class D1

Bottle to Tee

1шт.

10

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

5шт.

11

87721028

TEE

1шт.

12

87721299

HOSE,8.30 mm ID x 390 mm, SAE 30R6 Or SAE 20R4 Class D1

Engine to Tee

1шт.

13

87721260

RADIATOR HOSE,7.90 mm ID x 90.00 mm, SAE 30R6 Or SAE 20R4 Class D1

Radiator to Tee

1шт.

14

87301325

FITTING,5/16" Hose X 1/4" NPTF Beaded

1шт.

15

574518

HOSE CLAMP,6.3mm - 15.7mm, SAE # 4

1шт.

16

87721314

ORIFICE,1.5mm ID

1шт.
