(90.100.AU) - ENGINE HOOD

Запчасти Case 580SN (90.100.AU) - ENGINE HOOD (90) - PLATFORM, CAB, BODYWORK AND DECALS

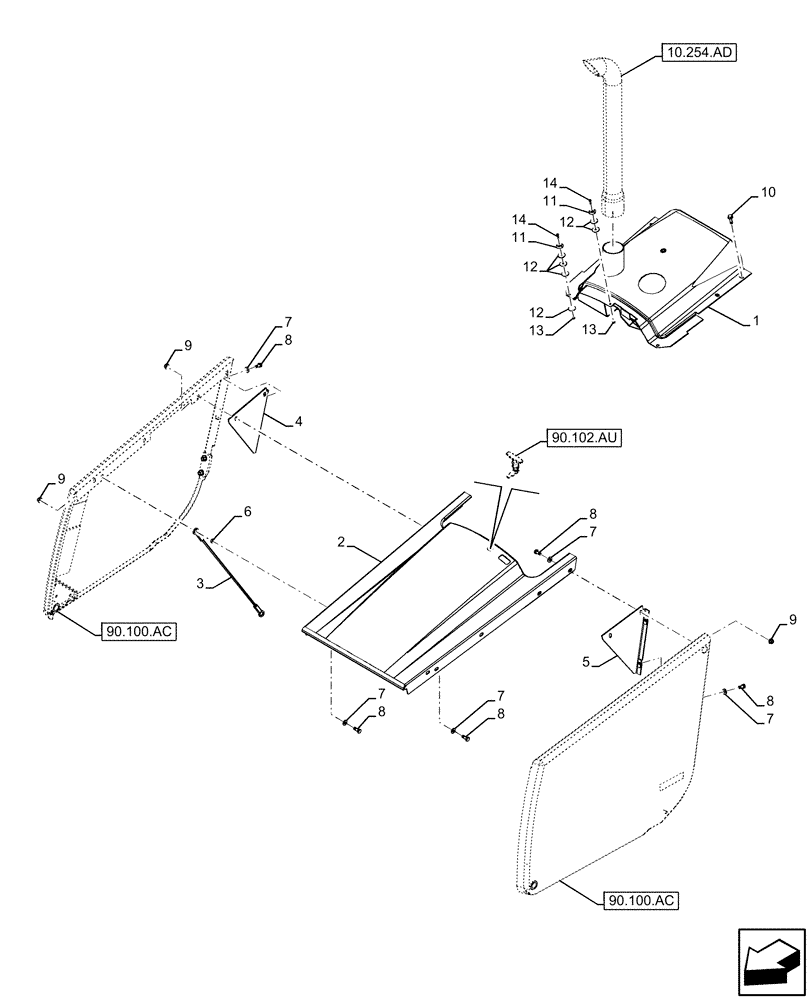

Схема запчастей Case 580SN - (90.100.AU) - ENGINE HOOD (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.100.ac
8
8
7
9
12
13
4
11
5
7
7
14
9
9
6
3
1
10
8
14
12
13
8
7
8
11
2
12
7
10.254.ad
90.102.au
90.100.ac
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84497799

ENGINE HOOD

Grey

1шт.

2

87594903

ENGINE HOOD

Grey

1шт.

3

144908A2

CABLE,638mm L

Hood Retaining

1шт.

4

362607A1

SUPPORT

Side Panel, RH

1шт.

5

362609A1

SUPPORT

Sidel Panel, LH

1шт.

6

D143417

SPACER,10.31mm ID x 15.88mm OD x 6.4mm L

1шт.

7

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

12шт.

8

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

12шт.

9

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

8шт.

10

392828A2

BOLT,M10-1.5 x 40mm L W/CAPTURED WASHER

4шт.

11

109879A1

SPACER,5.5mm ID x 30mm OD

Plastic Hood

3шт.

12

185325A1

SPACER,5.5mm ID x 30mm OD x 2mm L

10шт.

13

231-14109

LOCK NUT,#10-24, GB

3шт.

14

440-11014

SCREW,Cross Pan Hd, #10-24 x 7/8"

3шт.
