(90.100.AC) - ENGINE HOOD, SIDE PANEL

Запчасти Case 580SN (90.100.AC) - ENGINE HOOD, SIDE PANEL (90) - PLATFORM, CAB, BODYWORK AND DECALS

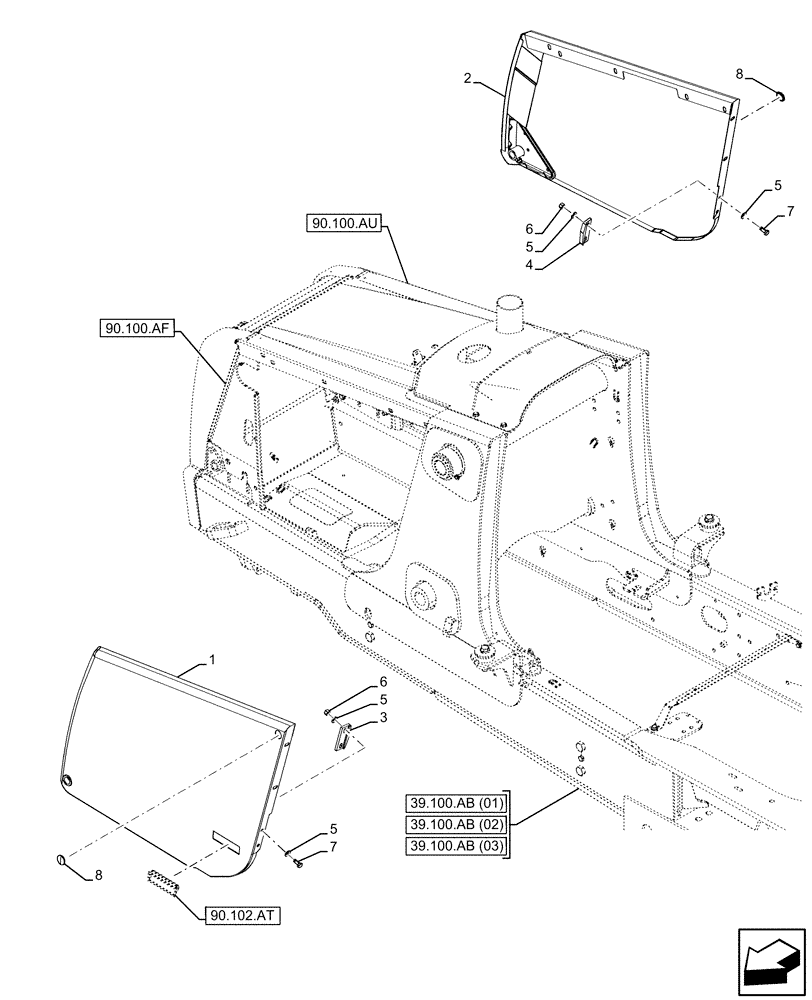

Схема запчастей Case 580SN - (90.100.AC) - ENGINE HOOD, SIDE PANEL (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.100.au
1
5
5
6
5
7
8
3
7
2
6
5
4
8
39.100.ab (03)
39.100.ab (02)
39.100.ab (01)
90.102.at
90.100.af
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87444148

PANEL, SIDE

LH, Power Tan

1шт.

2

87444147

PANEL, SIDE

RH, Power Tan

1шт.

3

D143715

SUPPORT

Panel, LH

1шт.

4

D143714

SUPPORT

Panel, RH

1шт.

5

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

8шт.

6

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

7

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

8

D140267

PLUG,30.16mm OD

Side Panel

2шт.
