(88.100.90[18]) - DIA KIT, DLX CONV - NARROW

Запчасти Case 580SN (88.100.90[18]) - DIA KIT, DLX CONV - NARROW (88) - ACCESSORIES

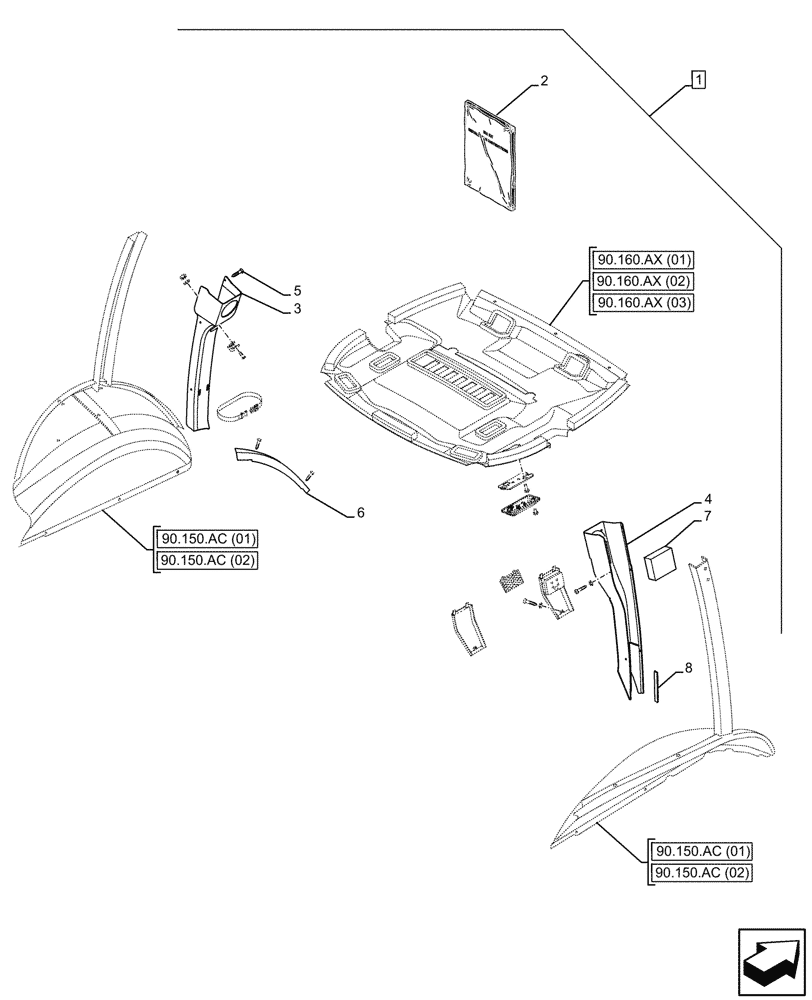

Схема запчастей Case 580SN - (88.100.90[18]) - DIA KIT, DLX CONV - NARROW (88) - ACCESSORIES
90.160.ax (02)
1
7
3
6
2
5
4
8
90.150.ac (02)
90.150.ac (02)
90.150.ac (01)
90.150.ac (01)
90.160.ax (01)
90.160.ax (03)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47605400

CONSTRUCTION DIA

DLX CONV - NARROW, Incl 2 - 8

1шт.

Refer to Installation Instruction P/N for Correct Assembly Procedure

1шт.

2

47624892

INSTRUCTION

1шт.

3

84397644

COVER

1шт.

4

84224375

COVER ASSY

1шт.

5

401949A1

FASTENER

10шт.

6

397774A3

STRIP

1шт.

7

412285A1

STRIP

1шт.

8

414939A1

SEAL,200mm L

2шт.
