Запчасти Case 580SN (88.100.84[05]) - DIA KIT, BOOM GUARD (88) - ACCESSORIES

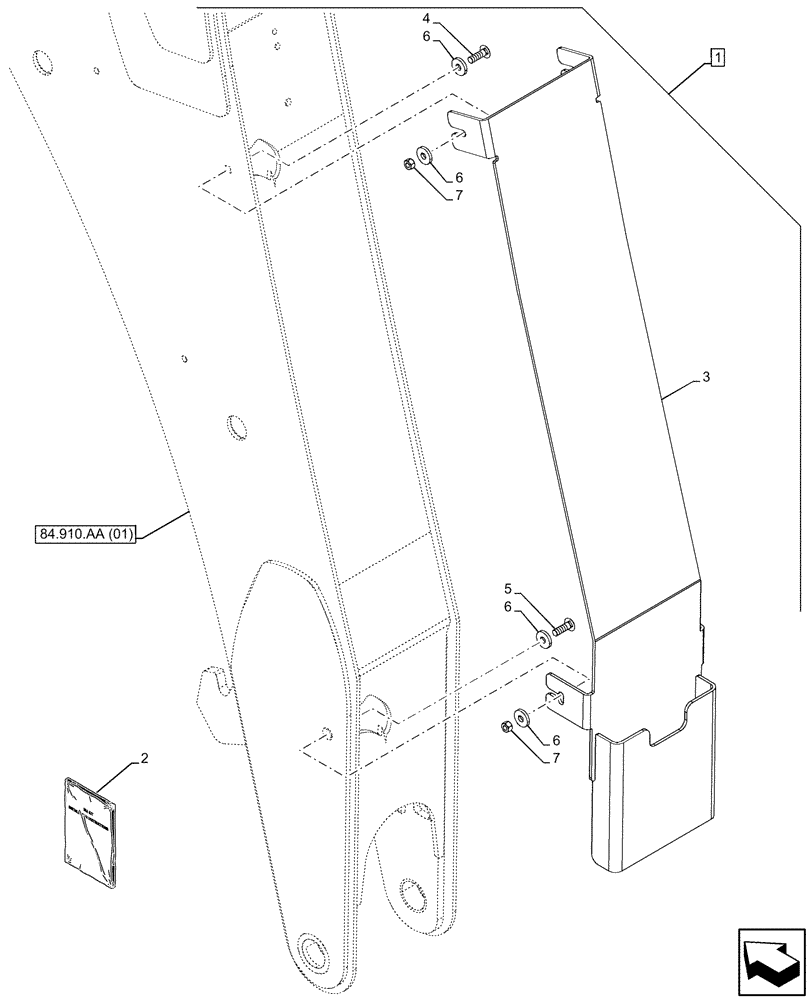

Схема запчастей Case 580SN - (88.100.84[05]) - DIA KIT, BOOM GUARD (88) - ACCESSORIES
84.910.aa (01)
1
5
7
3
4
2
6
7
6
6
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84395141

CONSTRUCTION DIA

Kit, BOOM GUARD, Incl 2 - 7

1шт.

Refer to Installation Instruction P/N for Correct Assembly Procedure

1шт.

2

84395142

INSTRUCTION

1шт.

3

84260388

GUARD

1шт.

4

328754

CARRIAGE BOLT,M12 x 1.75 x 40mm, Cl 8.8

2шт.

5

84227693

CARRIAGE BOLT,Reg Sq Nk, M12 x 1.75 x 65mm, Cl 8.8

2шт.

6

86592701

WASHER,13mm ID x 35mm OD x 5mm Thk

8шт.

7

337475

NUT,M12, Cl 10

4шт.
